116297B: Full suspension polyurethane bush kit

Reference: 116297B

Product name: Full suspension polyurethane bush kit

Fits to:

• Mercedes Class E W124 (84-97) 4MATIC

Include:

• 2x 111814B: Front anti roll bar - inner bush
• 2x 111827A: Front lower arm - front bush SPORT
• 2x 111828B: Front lower arm - rear bush
• 2x 111817A: Rear toe adjuster inner bush SPORT
• 6x 111818A: Rear control arm - inner bush SPORT
• 6x 111819A: Rear control arm - outer bush SPORT
• 2x 111820B: Rear track control arm - inner bush 33mm
• 2x 111821B: Rear anti roll bar bush
• 2x 111822B: Rear subframe - front bush
• 2x 111823B: Rear subframe - rear bush
• 0/2x 212127B: Rear wishbone bushing
• 0/1x 212126A: Rear subframe - front bush SPORT

Diagrams:

• D1112
• D1122
• D1156

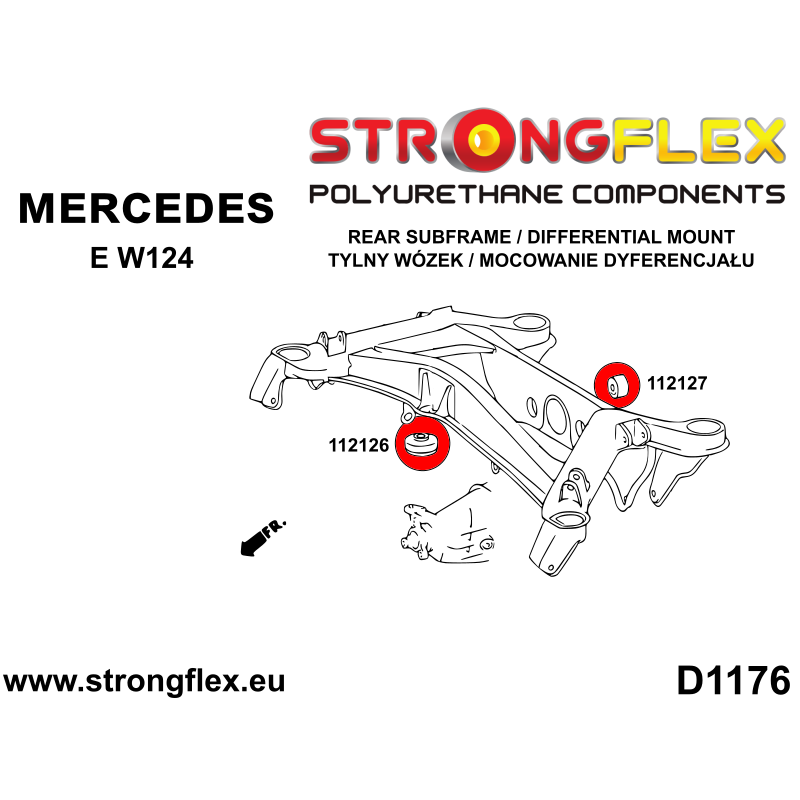

• D1176

Notes

• Applies to bush 111819 - During installation you should use the original 13mm reducer sleeve from an old wishbone.
• W silniku V8 stosowane są inne mocowania dyferencjału.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 28/31

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
