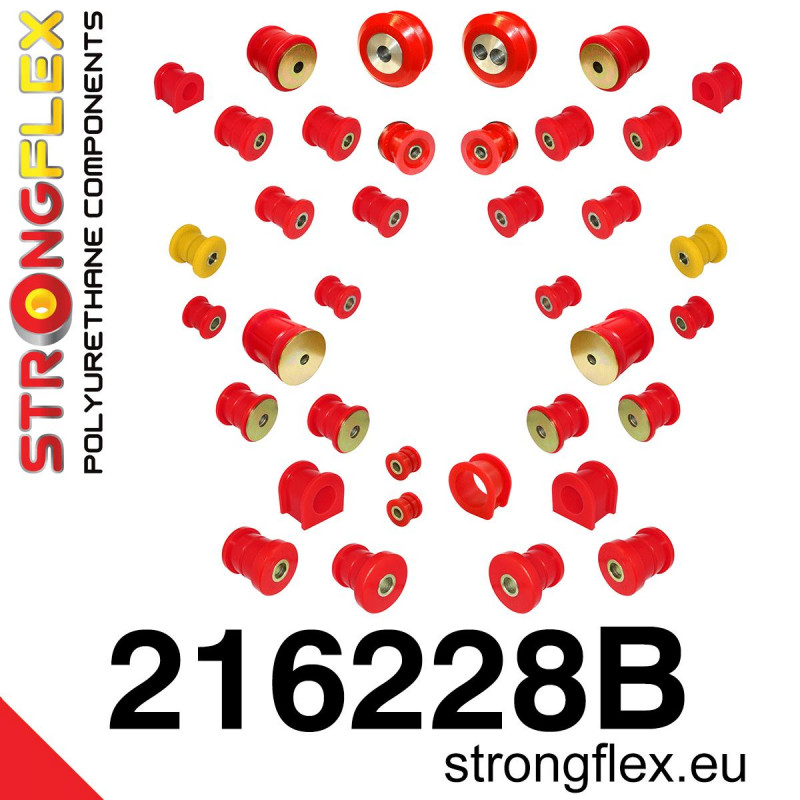

216228B: Full suspension bush kit

Reference: 216228B

Product name: Full suspension bush kit

Fits to:

• Lexus SC I (91-00) Z30


• Toyota Soarer III (91-00) Z30
• Toyota Supra IV (93-02) A80

Include:

• 2x 211623B: Front anti roll bar bush
• 2x 211624B: Front lower wishbone front bush
• 2x 211625B: Front lower wishbone rear bush
• 4x 211626B: Front upper wishbone bush


• 2x 211627B: Rear trailing arm front bush 34mm
  or
• 2x 211694B: Rear trailing arm front bush 46mm


• 2x 211628B: Rear link arm inner bush 40mm
• 2x 211629B: Rear trailing arm rear bush
• 2x 211630B: Rear track control arm inner bush


• 2x 211631A: Rear track control arm outer bush 39mm SPORT
  or
• 2x 211632A: Rear track control arm outer bush 40,5mm SPORT


• 4x 211633B: Rear upper wishbone bush


• 2x 211634B: Rear anti roll bar bush
  or
• 2x 211848B: Rear anti roll bar bush


• 1x 211635B: Steering clamp bush
• 2x 211636B: Steering rack mount bush
• 2x 211792B: Rear beam - front bush
• 2x 211793B: Rear subframe - rear bush
• 2x 211794B: Rear diff mount - front bush
• 1x 211795B: Rear diff mount - rear bush
• 1x 211796B: Rear diff mount - rear bush

Diagrams:

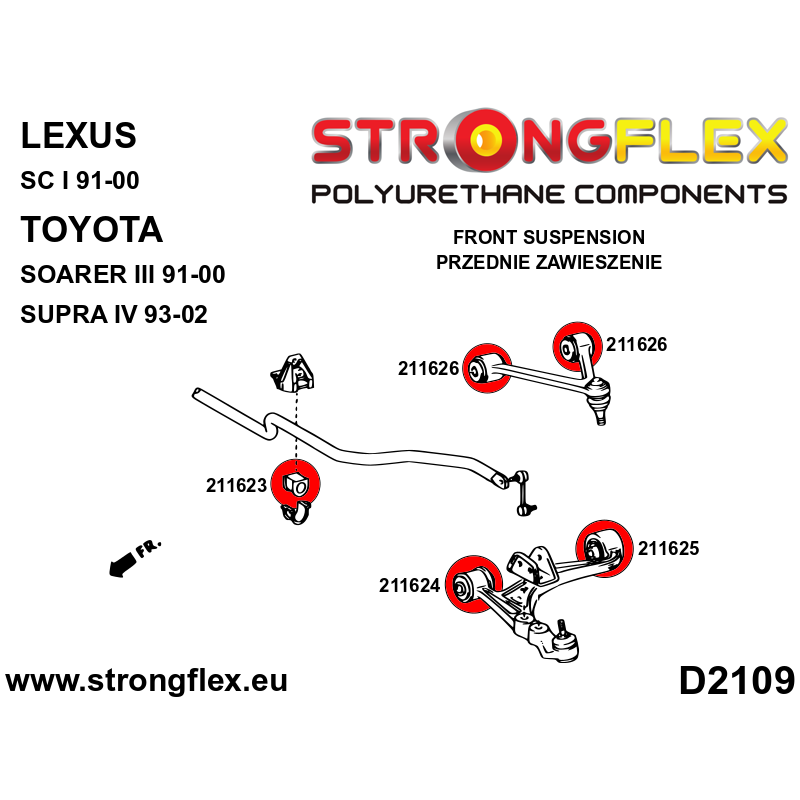

• D2109

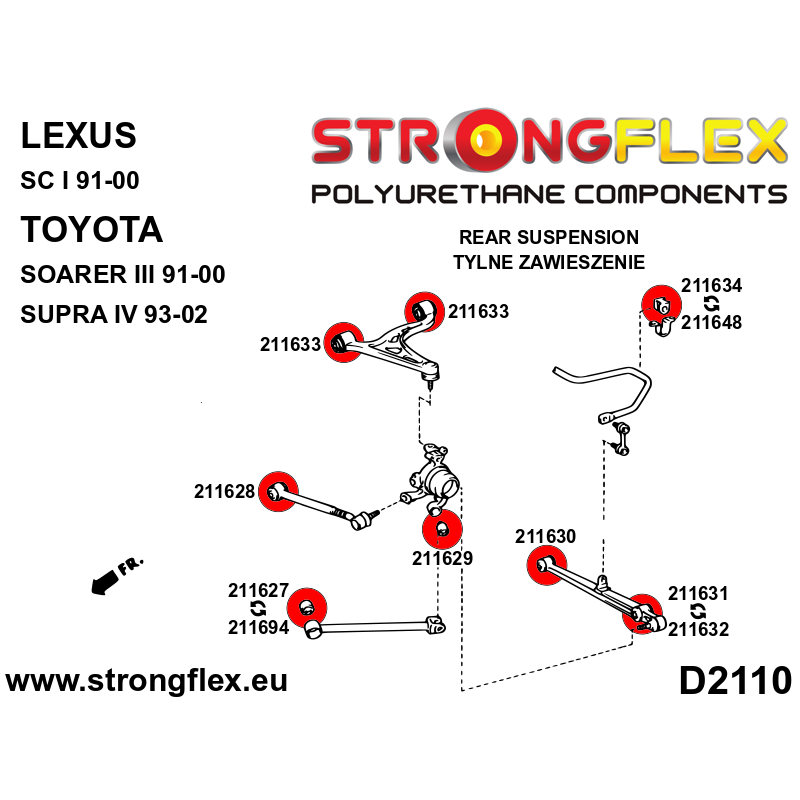

• D2110

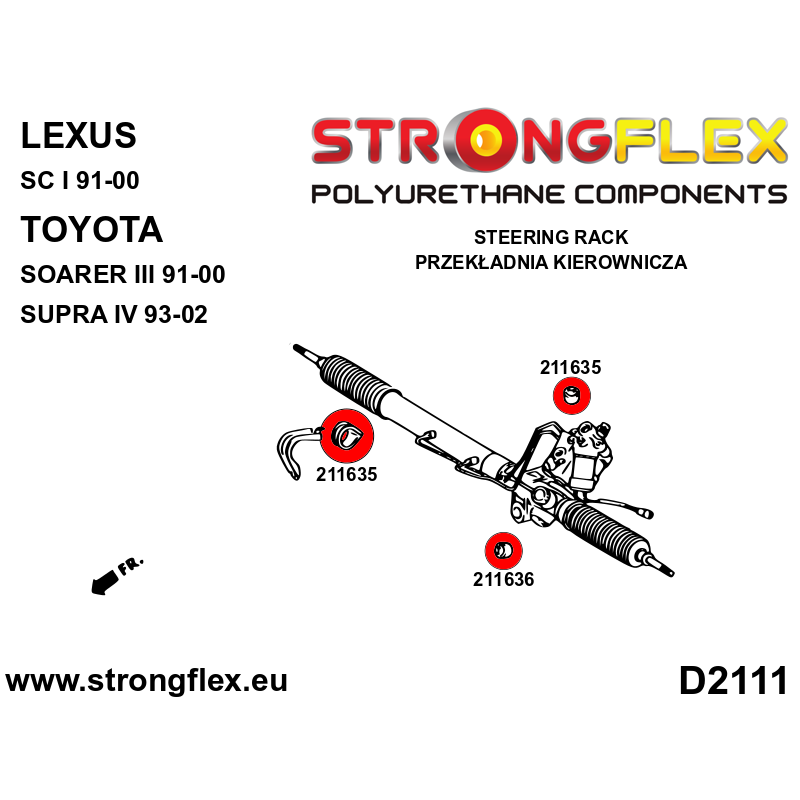

• D2111

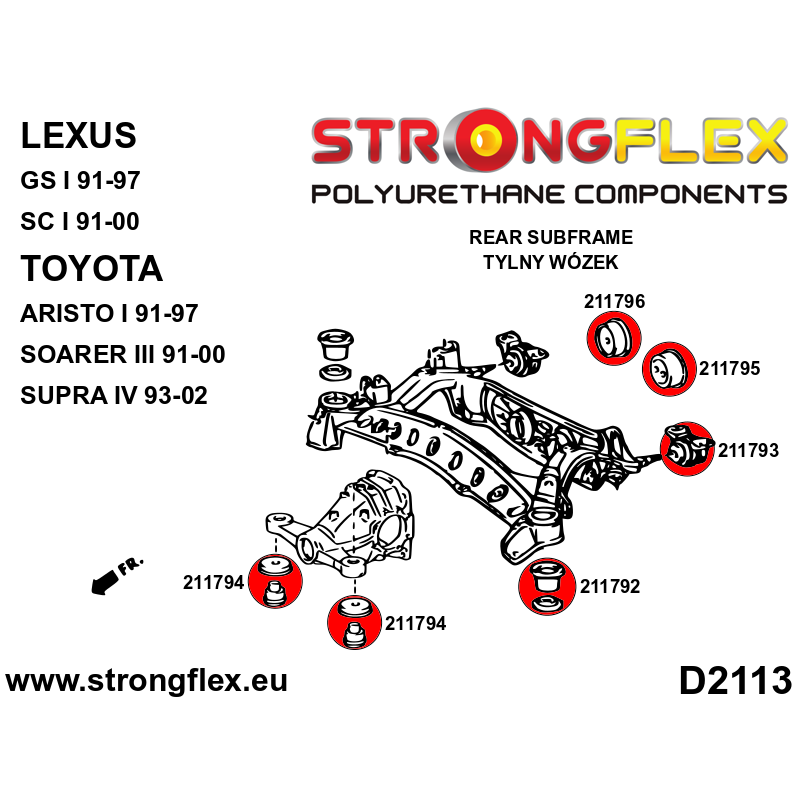

• D2113

Notes

• Rear trailing arm bush - front:
  211627 - diameter 34mm
  211694 - diameter 46mm


• Rear lower wishbone bush - outer:
  211631 - diameter 39mm
  211632 - diameter 40.5mm


• Rear stabilizer bush:
  211634 - fits Toyota Supra
  211848 - fits Lexus SC, Toyota Soarer


• For bush 211635:
  There are different diameters 47mm / 50mm. Check the diameter of your steering gear before purchasing.

Required/car: 1

Pcs / prod: 1

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
