286217A: Full suspension bush kit R33 R34 RWD SPORT

Reference: 286217A

Product name: Full suspension bush kit R33 R34 RWD SPORT

Fits to:

• Nissan Skyline IX (93-98) R33 RWD
• Nissan Skyline X (97-02) R34 RWD

Include:

• 2x 281400A: Front anti roll bar bush SPORT
  or
• 2x 281401A: Front anti roll bar bush GTR SPORT


• 4x 281622A: Front upper wishbone bush SPORT
• 2x 281913A: Front hub bush SPORT


• 1x 281261A: Steering rack mount bush SPORT
                       45mm/48mm/50mm


• 2x 281262A: Front lower radius arm to chassis bush SPORT
  or
• 2x 281788A: Front lower radius arm to chassis bush SPORT


• 2x 281263A: Front inner track control arm bush 34mm SPORT
  or
• 2x 281397A: Front inner track control arm bush 38mm SPORT


• 2x 281399A: Rear roe link inner bush SPORT
• 10x 281218A: Rear arm bush SPORT
• 4x 281398A: Rear trailing arm bushes SPORT
• 2x 281268A: Rear anti roll bar bush SPORT
• 4x 281269A: Rear anti roll bar link bush SPORT
• 4x 281270A: Rear beam mounting bush RWD SPORT
• 2x 281849A: Rear diff mount - front bush SPORT
• 2x 281850A: Rear diff mount - rear bush SPORT

Diagrams:

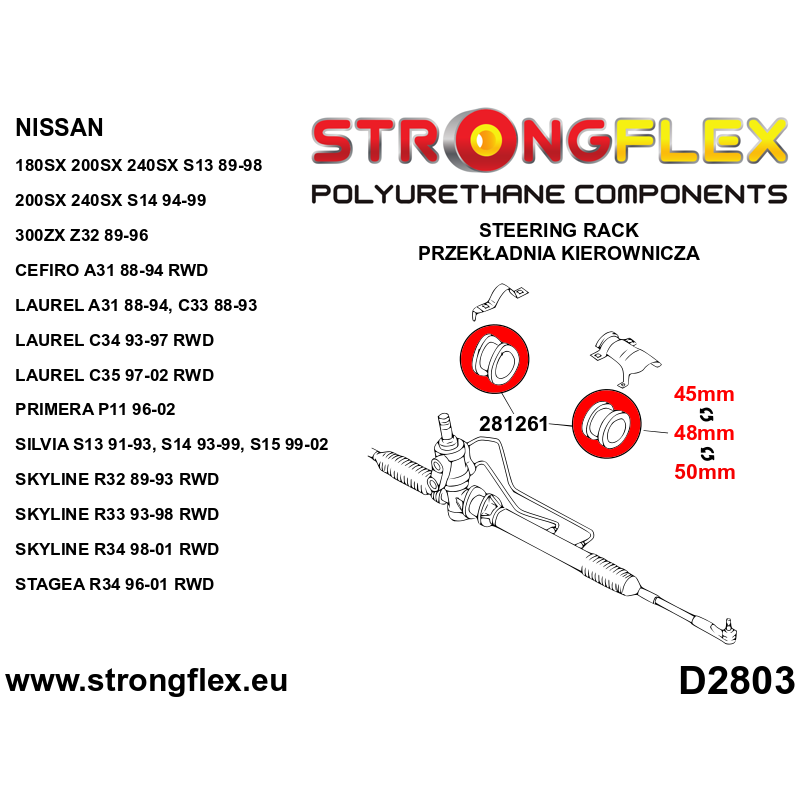

• D2803
• D2837
• D2839
• D2840
• D2841

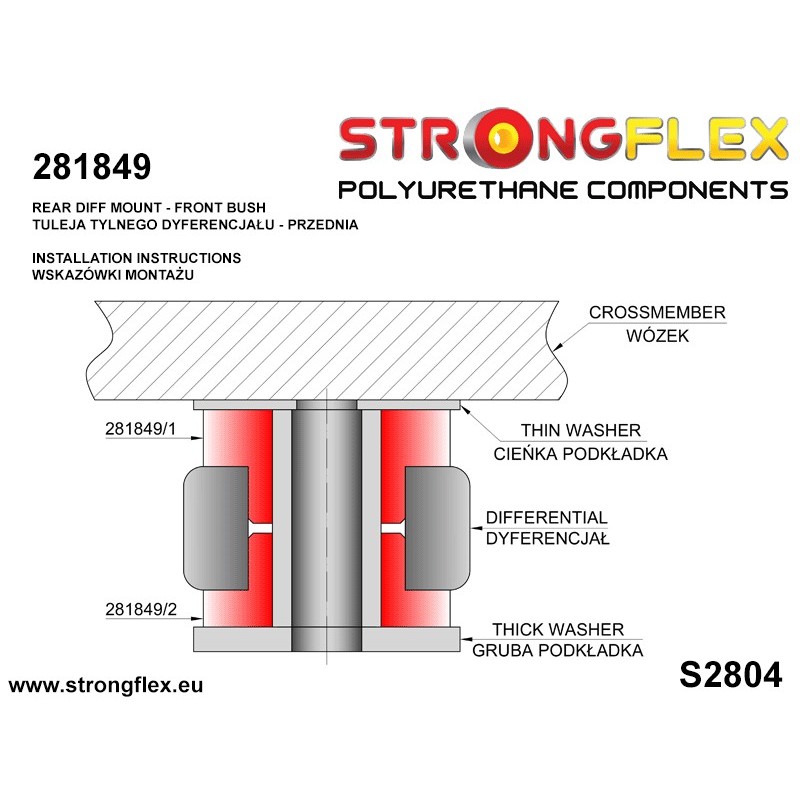

• S2804
• S2805

Notes

• Select the appropriate diameter of the steering gear bushing 45mm/48mm/50mm.

• Select the appropriate front lower wishbone bushings:
  281263 - outer diameter 34mm
  281397 - outer diameter 38mm
  See photo S2808.


• Depending on the version, there are different stabilizer bushes 281400 / 281401, see photo S2806.


• Depending on the version, there are different front reaction rod bushes:
  281262 - bush length 70mm
  281788 - bush length 83mm
  See photo S2807.

• Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01. You can buy a replacement for the original washer matched to our bush. In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 43

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
