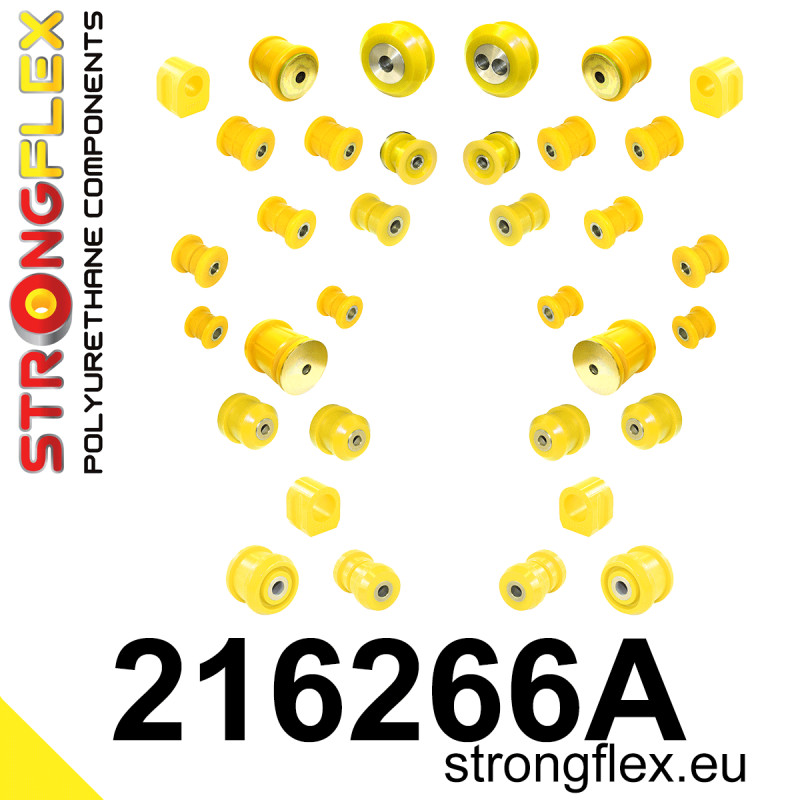

216266A: Full suspension bush kit SPORT

Reference: 216266A

Product name: Full suspension bush kit SPORT

Fits to:

• Lexus GS I (91-97) S140


• Toyota Aristo I (91-97) S140

Include:

• 2x 211977A: Front lower arm bush SPORT
• 2x 211978A: Front lower radius arm to chassis bush SPORT
• 2x 211979A: Front anti roll bar bush SPORT
• 4x 211912A: Front upper arm bush SPORT


• 2x 211628A: Rear link arm inner bush 40mm SPORT
  or
• 2x 211924A: Rear link arm inner bush 35mm SPORT


• 2x 211629A: Rear trailing arm rear bush SPORT
• 2x 211630A: Rear track control arm inner bush SPORT
• 2x 211632A: Rear track control arm outer bush 40,5mm SPORT
• 2x 211694A: Rear trailing arm front bush 46mm SPORT
• 4x 211633A: Rear upper wishbone bush SPORT
• 2x 211923A: Rear anti roll bar bush SPORT
• 2x 211792A: Rear subframe - front bush SPORT
• 2x 211793A: Rear subframe - rear bush SPORT
• 2x 211794A: Rear diff mount - front bush SPORT
• 1x 211795A: Rear diff mount - rear bush SPORT
• 1x 211796A: Rear diff mount - rear bush SPORT

Diagrams:

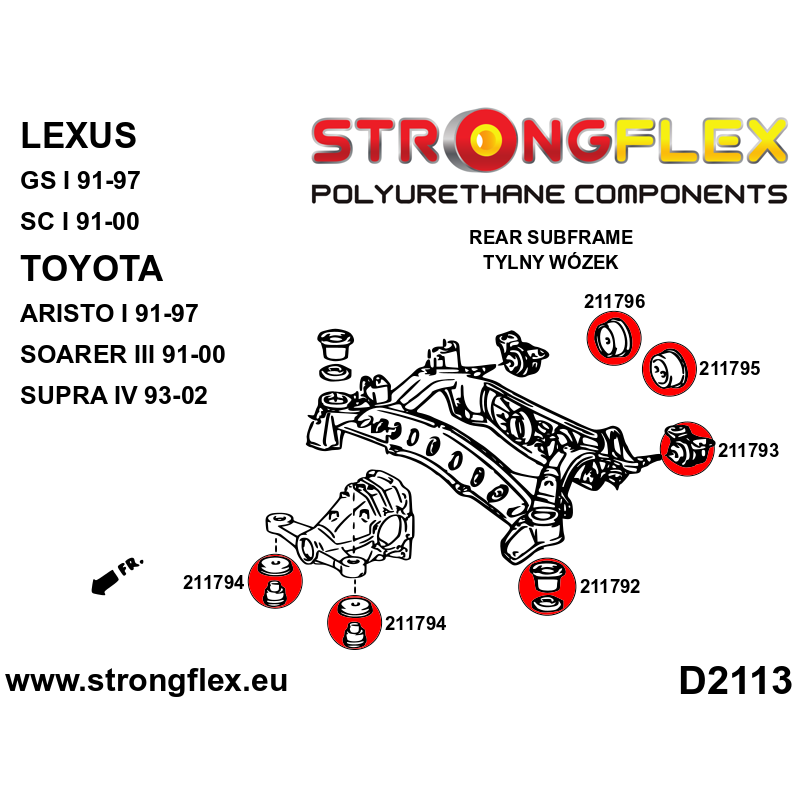

• D2113

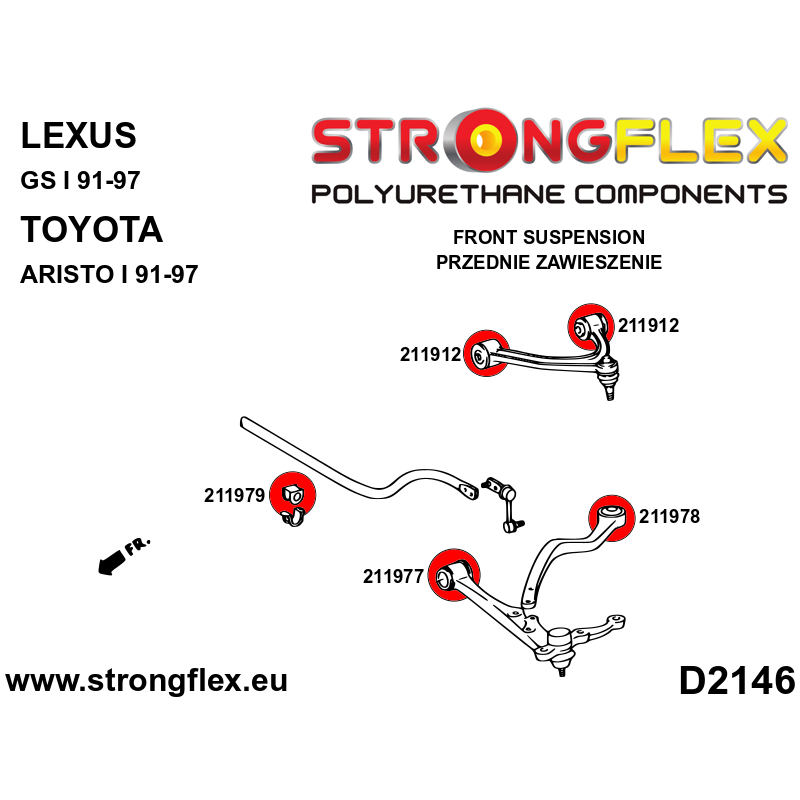

• D2146

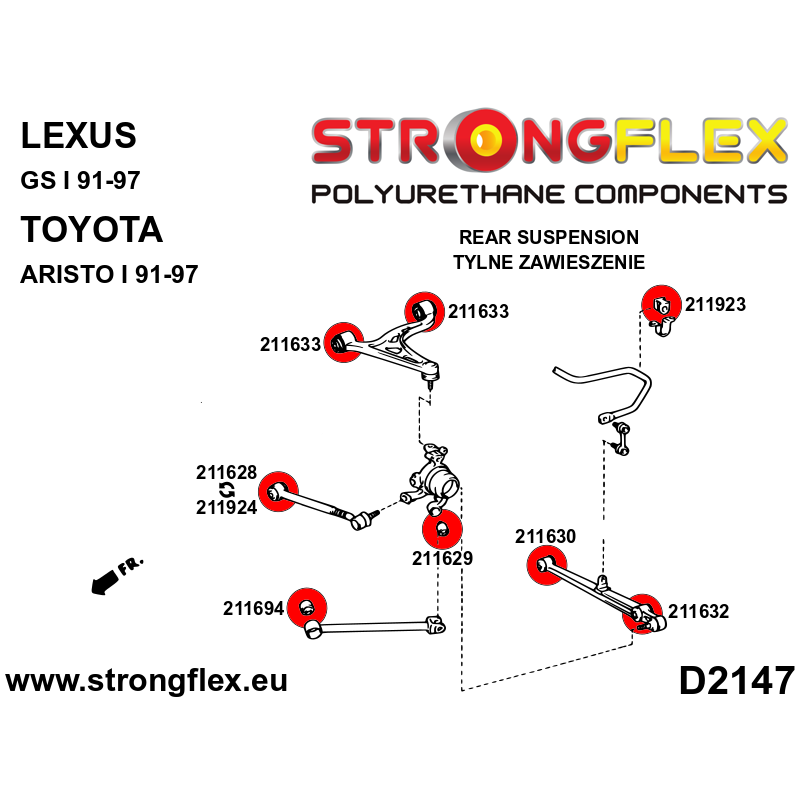

• D2147

Notes

• Rear Link Bushing:
  For models manufactured from 1993 to 1995, select bushings 211628 (diameter 40mm).
  For models manufactured from 1996 to 1997, select bushings 211924 (diameter 35mm).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 34

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
