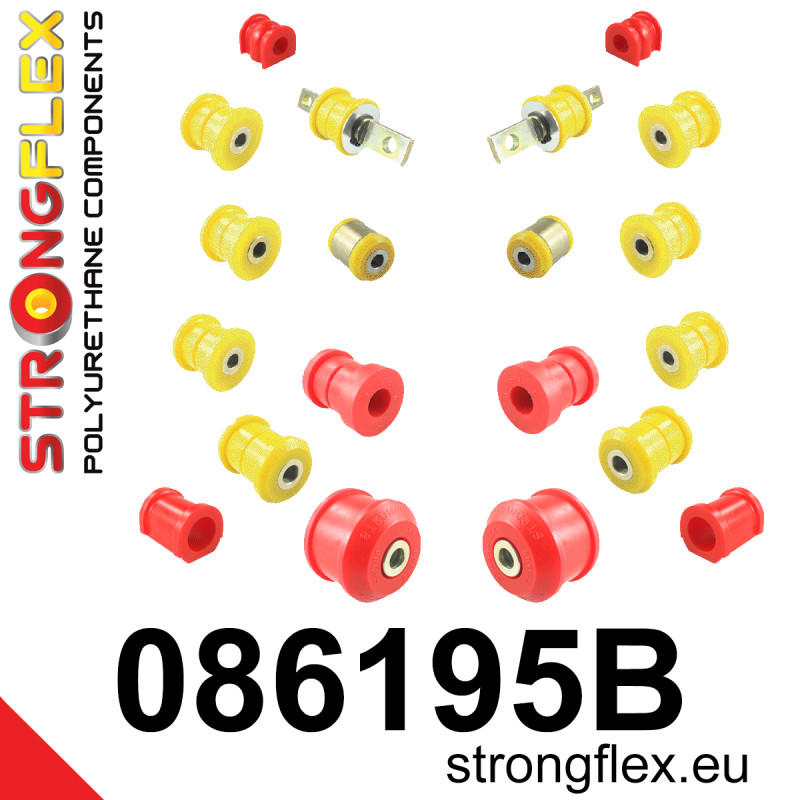

086195B: Full suspension bush kit

Reference: 086195B

Product name: Full suspension bush kit

Fits to:

• Acura RSX (01-06) DC5
• Honda CR-V II (02-06) RD4 / RD5 / RD6 / RD7 / RD8 / RD9
• Honda Civic VII (01-06) EP / EU / EV / EM / ES
• Honda Civic VII (01-06) EP3 Type R
• Honda Element (03-11) YH1 / YH2
• Honda Integra IV (01-06) DC5

Include:

• 2x 081572B: Front wishbone front bush
• 2x 081573A: Front wishbone rear bush SPORT
• 2x 081580B: Front anti roll bar bush
• 2x 081574B: Rear trailing arm front bush
• 2x 081575A: Rear suspension inner lower bush SPORT
• 2x 081576A: Rear lower arm outer front bush SPORT
• 2x 081577A: Rear lower arm outer rear bush SPORT


• 2/4x 081578A: Rear suspension bush SPORT
• 2/0x 081579A: Rear upper arm inner bush SPORT


• 2x 081581B: Rear anti roll bar bush

Diagrams:

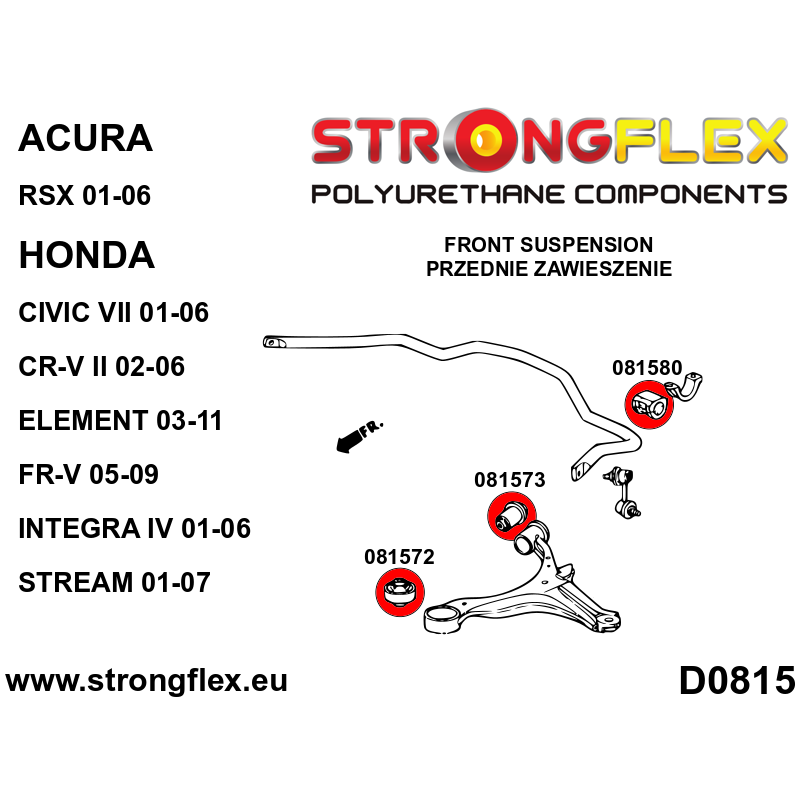

• D0815
• D0816

Notes

• For 081575 / 081576 bushes:
  For Acura RSX, Honda Civic, CR-V, Integra choose bushes for 12mm bolt.
  For Honda Element choose bushes for 14mm bolt.


• For 081578 / 081579 bushes:
  Depending on the model, you need 2x081578 and 2x081579 or 4x081578 per car.
  For Acura RSX, Honda Civic, Integra choose 2x081578 and 2x081579.
  For Honda CR-V, Element choose 4x081578.


• For the 081574 bush:
  To assemble the bush, you need parts from the old rubber-metal sleeve. The assembly details are visible in the attached animation.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 20

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
