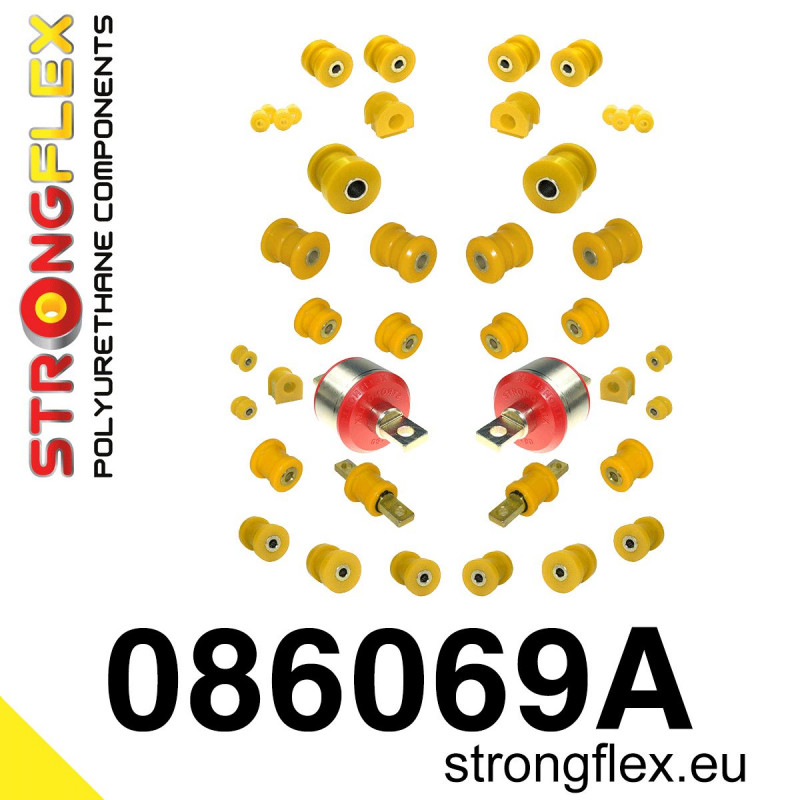

086069A: Full suspension bush kit SPORT

Reference: 086069A

Product name: Full suspension bush kit SPORT

Fits to:

• Honda CRX del Sol (92-97)
• Honda Civic V (91-95) EG / EH / EJ

Include:

• 2x 081094A: Front wishbone - outer bush SPORT
• 2x 081095A: Front wishbone - inner bush SPORT
• 2x 081097A: Front anti roll bar bush SPORT
• 4x 081100A: Front upper wishbone bush SPORT
• 8x 081109A: Front eye bolt mounting bush SPORT
• 2x 081118A: Front lower wishbone rear bush SPORT


• 4x 081101A: Outer arm to hub bush and inner track arm bush 31mm SPORT
  or
• 4x 081107A: Outer arm to hub bush and inner track arm bush 35mm SPORT


• 2x 081102A: Rear lower shock mounting bush SPORT
• 2x 081103A: Rear upper outer link/hub bush SPORT
• 2x 081104A: Rear trailing arm mount bush SPORT
• 2x 081105B: Rear trailing arm mount bush
• 4x 081108A: Rear toe link arm bush SPORT
• 2x 081171A: Rear anti roll bar bush SPORT
• 2x 081196A: Rear anti roll bar link bush SPORT
• 2x 081521A: Rear anti roll bar link bush SPORT

Diagrams:

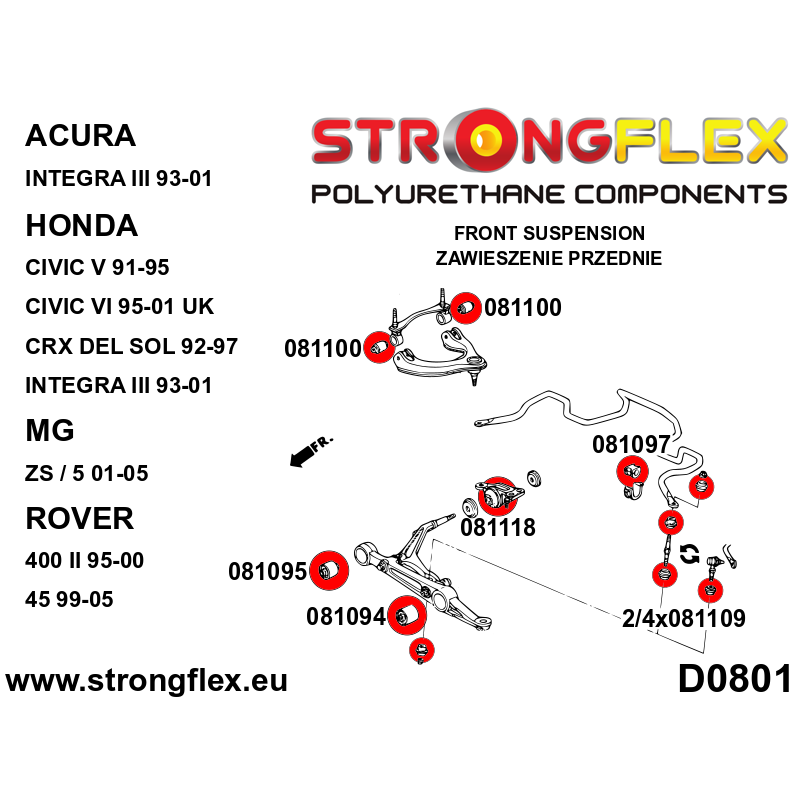

• D0801

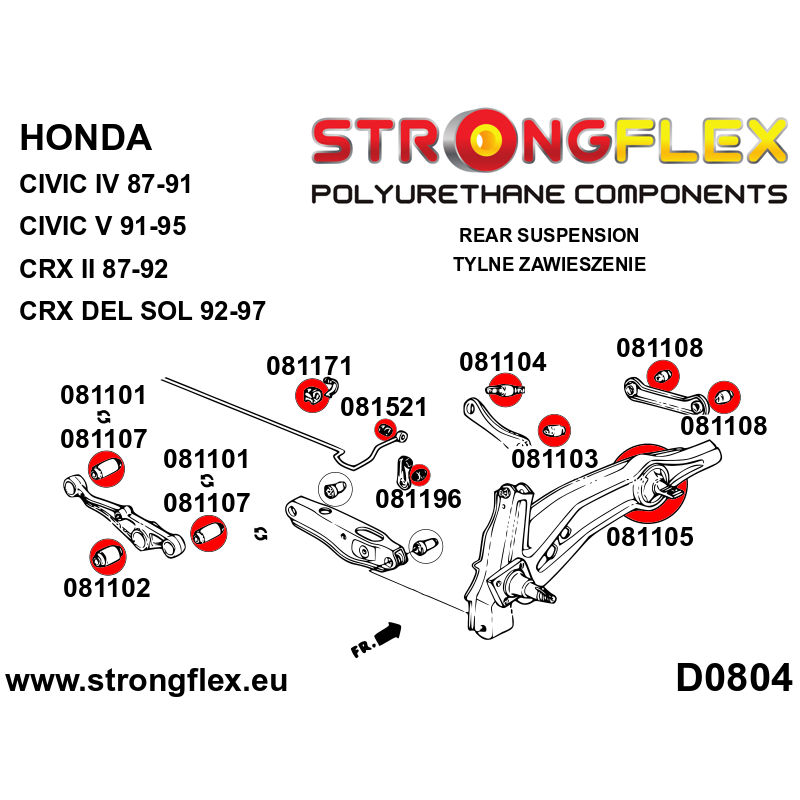

• D0804

Notes

• Bushings 081105B can be purchased as a polyurethane "insert", without metal parts (inner and outer metal sleeve).

  To mount the "insert", an external metal ring and an inner metal sleeve from the old original rubber bush are needed.
  Metal parts should be burned or cut. The original internal metal bushing recovered must have a diameter of 30mm, check this value before selecting the "insert" option.

  The old bush should be burnt or cut out. Bushing 081105B is not a replacement for the original bushing, the suspension will be stiffened.

• Before purchasing, check the diameter of the rear lower arm bushing (081101 31mm or 081107 35mm).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 42

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
