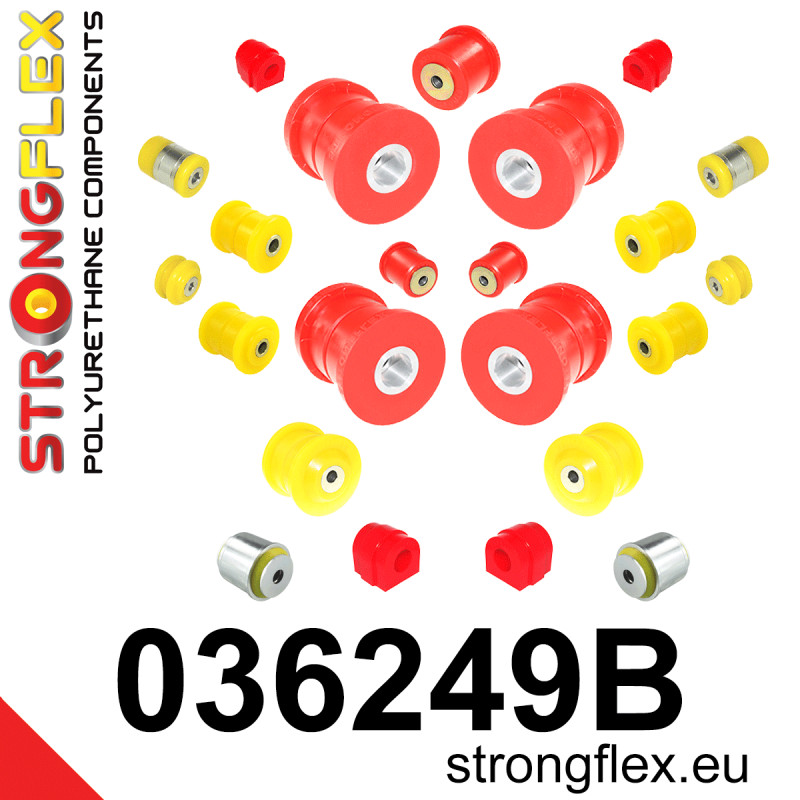

036249B: Full suspension polyurethane bush kit

Reference: 036249B

Product name: Full suspension polyurethane bush kit

Fits to:

• BMW 5 V (03-10) E60 / E61 Sedan xi xd
• BMW 5 V (03-10) E60 / E61 Touring xi xd

Include:

• 2x 031248B: Front anti roll bar bush
• 2x 031421A: Front inner track control arm bush SPORT
• 2x 031943A: Front radius arm to chassis bush SPORT


• 0/2x 031744A: Rear toe adjust inner bush SPORT (M10 screw)


• 2x 031745A: Rear upper arm inner bush SPORT
• 2x 031197A: Rear lower trailing arm - front bush SPORT (M12 screw)
• 2x 031198A: Rear lower trailing arm - rear bush SPORT (M14 screw)
• 2x 031586B: Rear anti roll bar bush


• 2x 031941B: Rear subframe – front bush
• 2x 031942B: Rear subframe – rear bush
• 2x 031939B: Rear diff mount - front bush
• 1x 031940B: Rear diff mount - rear bush

Diagrams:

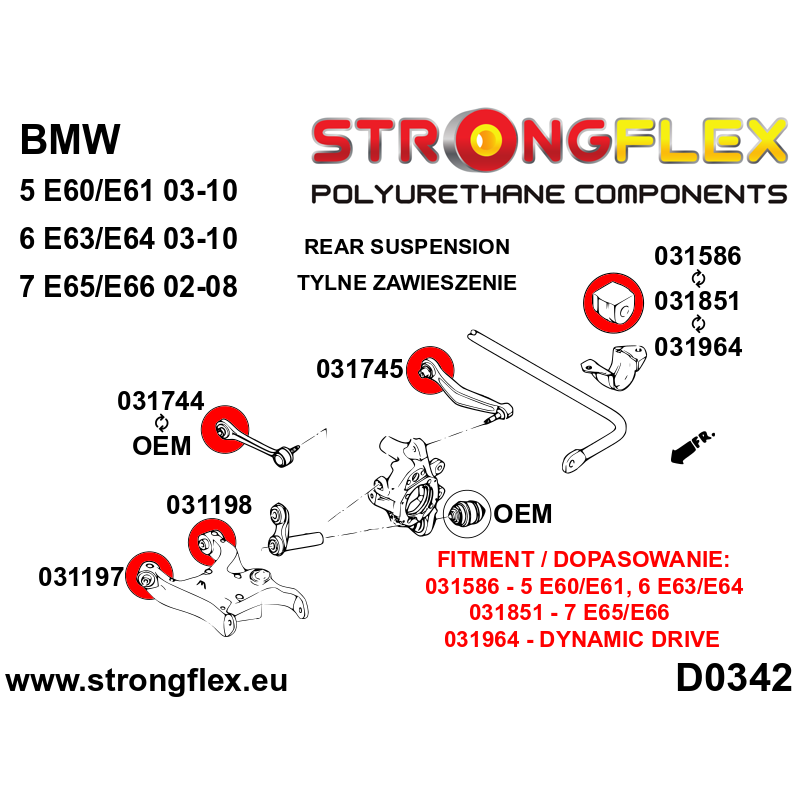

• D0342

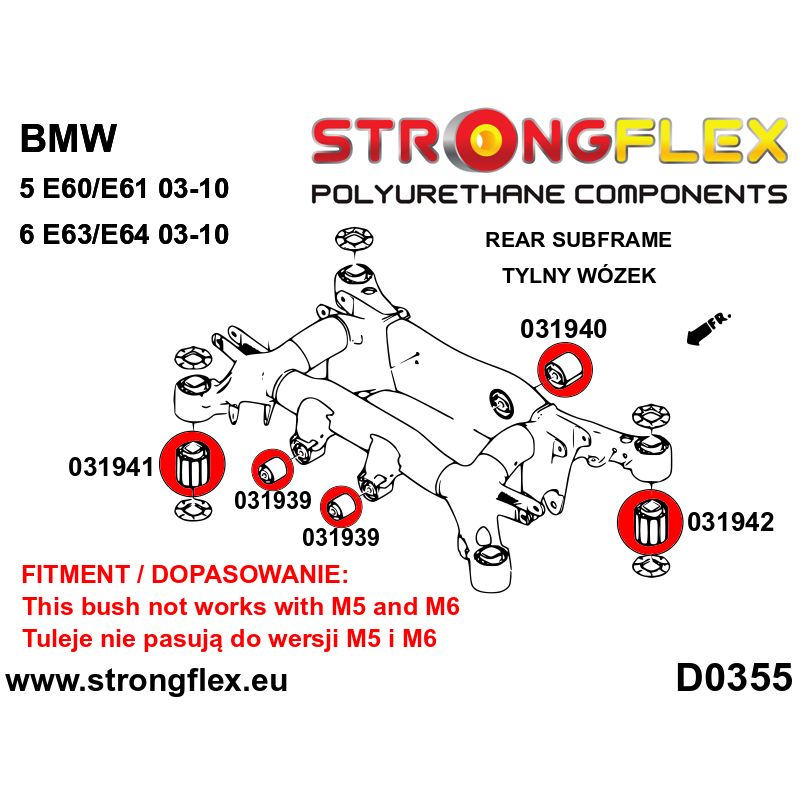

• D0355

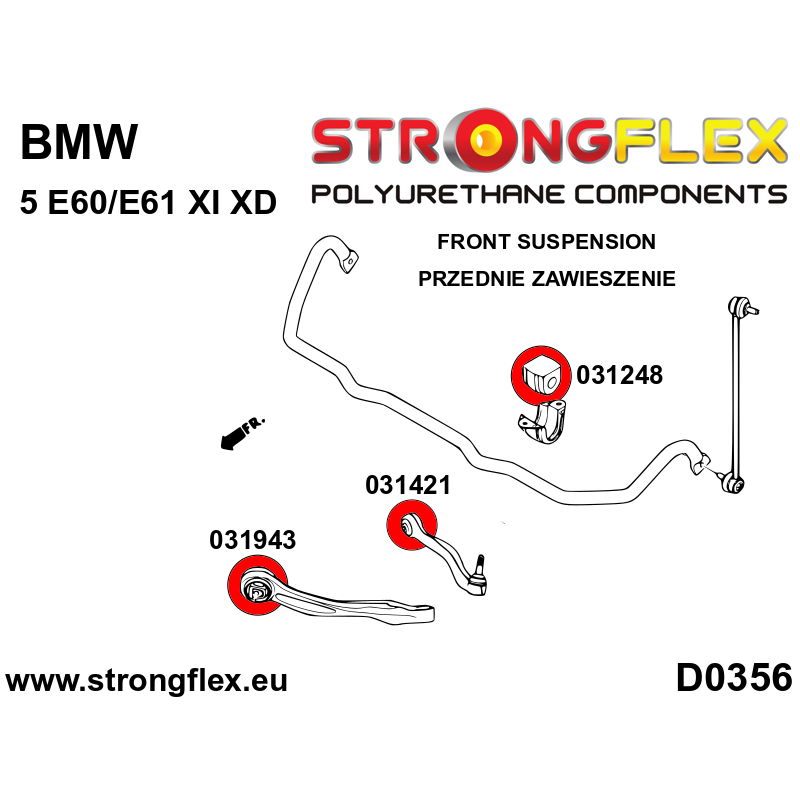

• D0356
• S0338

Notes

• This kit only fits XDRIVE version (xi xd) models

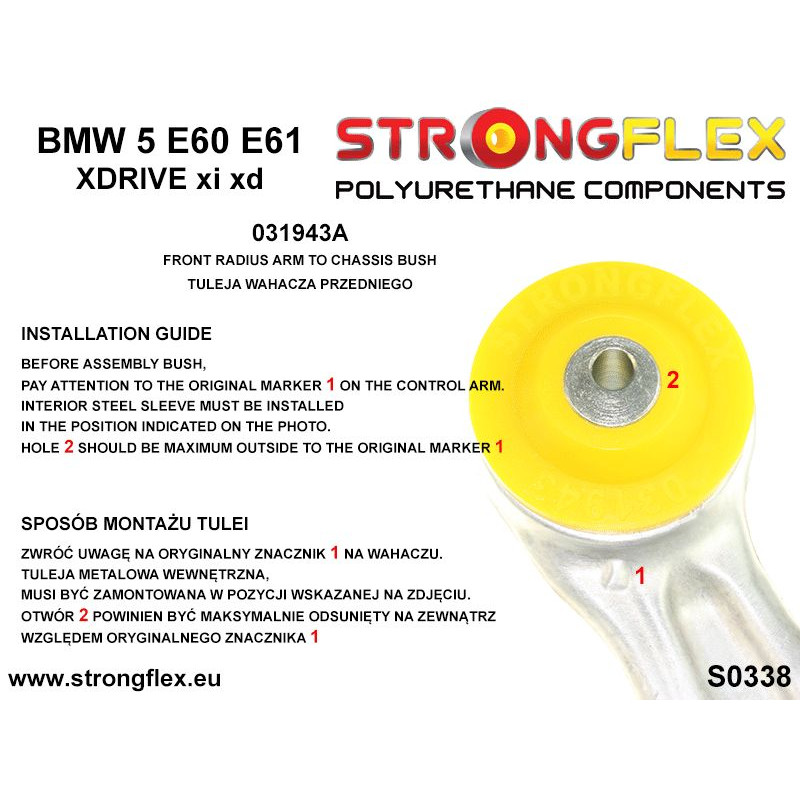

• *Installation guide 031943A bush, see attached photo S0338

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 21/23

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
