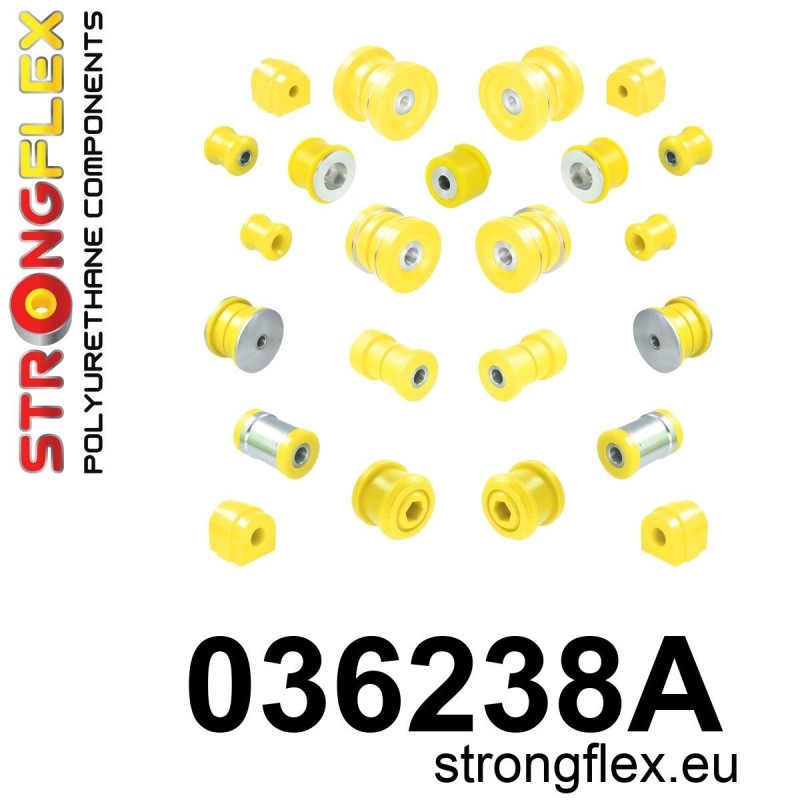

036238A: Full suspension bush kit SPORT

Reference: 036238A

Product name: Full suspension bush kit SPORT

Fits to:

• BMW Series 3 IV (98-07) E46 M3
• BMW Z4 I (02-08) E85 / E86 M3.2

Include:

• 2x 031248A: Front anti roll bar bush SPORT
• 2x 031516A: Front wishbone bush - centric 60mm SPORT
• or
• 2x 031518A: Front wishbone bush - centric 66mm SPORT
• or
• 2x 031946A: Front wishbone bush - centric 66mm SPORT
• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT
• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031586A: Rear anti roll bar bush SPORT
• 2x 031413B: Rear subframe front bush
• or
• 2x 031413A: Rear subframe front bush SPORT
• 2x 031414B: Rear subframe rear bush
• or
• 2x 031414A: Rear subframe rear bush SPORT
• 1x 031898A: Rear differential - front mount bush M3 SPORT
• 2x 031899A: Rear differential - rear mount bush M3 SPORT
• 2x 031962A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031963A: Rear anti roll bar link to arm bush SPORT

Diagrams:

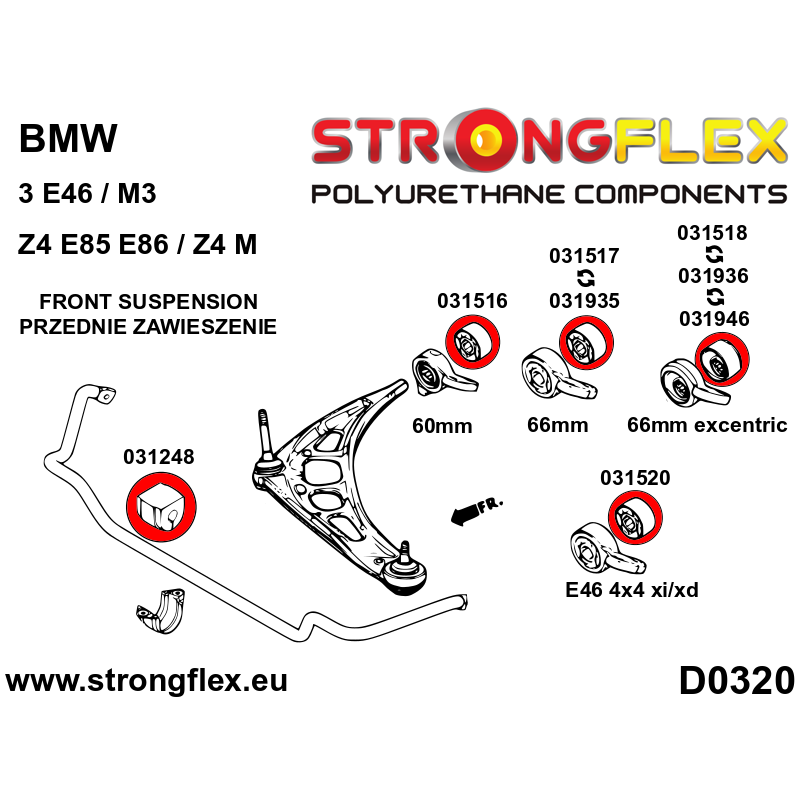

• D0320

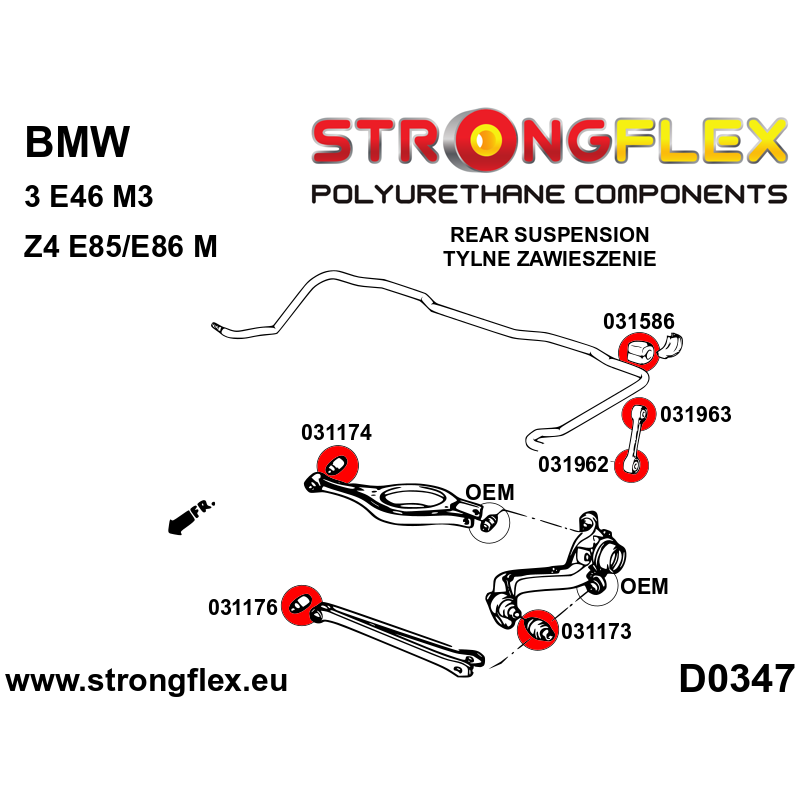

• D0347

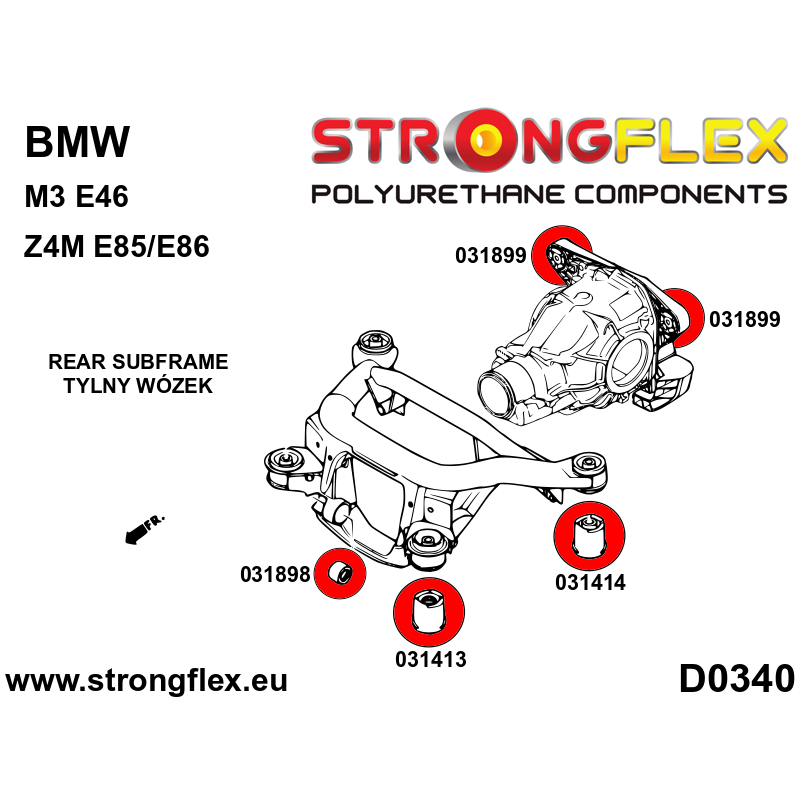

• D0340

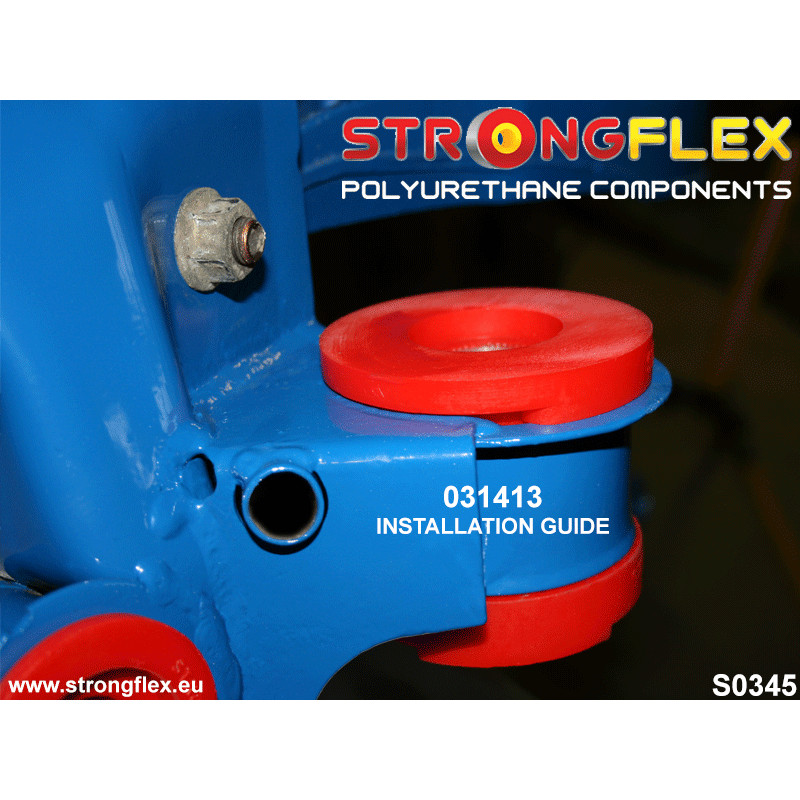

• S0345

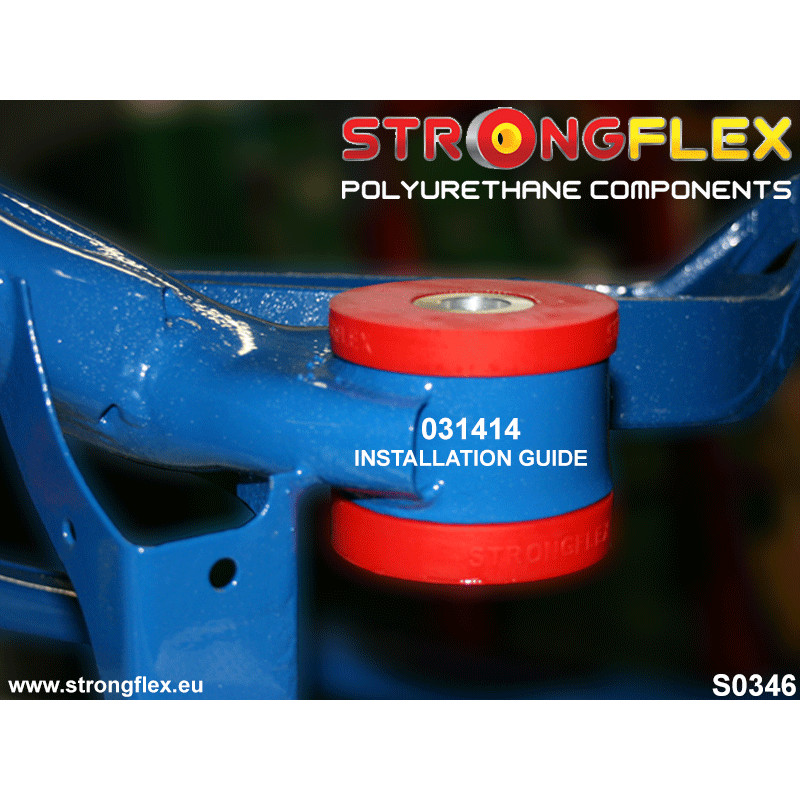

• S0346

Notes

• Bushings rear subframe 031413 and 031414 are included by default with a hardness 80ShA (red). Bushes 90ShA (yellow) dedicated to the cars being prepared for the rally, drift, etc.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 23

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
