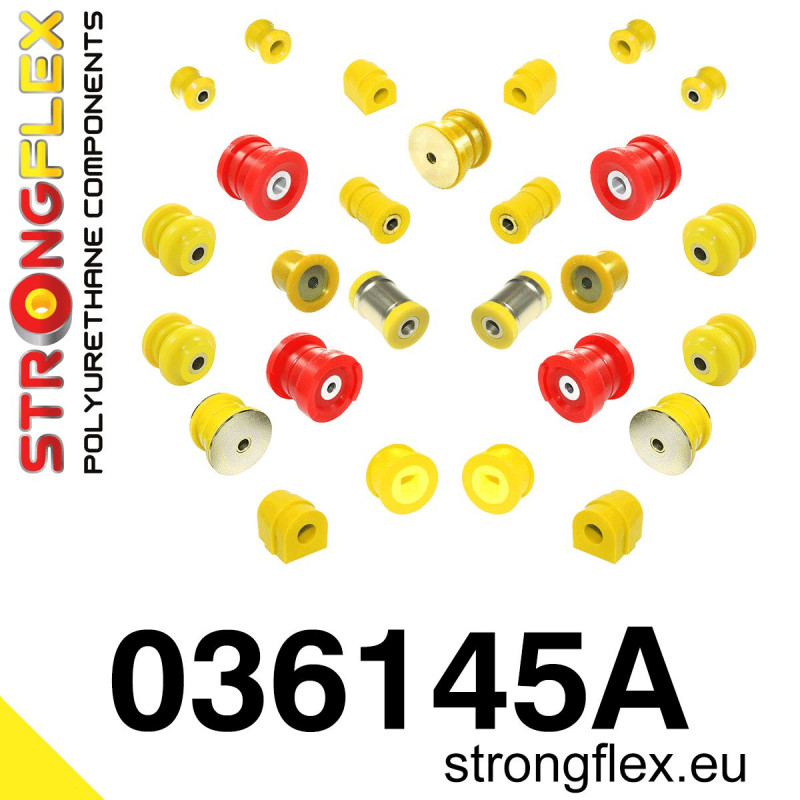

036145A: Full suspension bush kit SPORT

Reference: 036145A

Product name: Full suspension bush kit SPORT

Fits to:

• BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
• BMW Z4 I (02-08) E85 / E86

Include:

• 2x 031248A: Front anti roll bar bush SPORT


• 2x 031516A: Front wishbone bush - centric 60mm SPORT
  or
• 2x 031517A: Front wishbone bush - centric 66mm SPORT
  or
• 2x 031518A: Front wishbone bush - eccentric 66mm SPORT
  or
• 2x 031520A: Front wishbone bush - 4x4 versions XI XD SPORT


• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT
• 4x 031175A: Rear arm - outer bush SPORT
• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031167A: Anti roll bar bush front / rear SPORT


• 2x 031413A: Rear subframe front bush SPORT
  or
• 2x 031413B: Rear subframe front bush


• 2x 031414A: Rear subframe rear bush SPORT
  or
• 2x 031414B: Rear subframe rear bush


• 2x 031751A: Rear differential front mount bush SPORT
• 1x 031752A: Rear differential rear mount bush SPORT
• 2x 031962A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031963A: Rear anti roll bar link to arm bush SPORT

Diagrams:

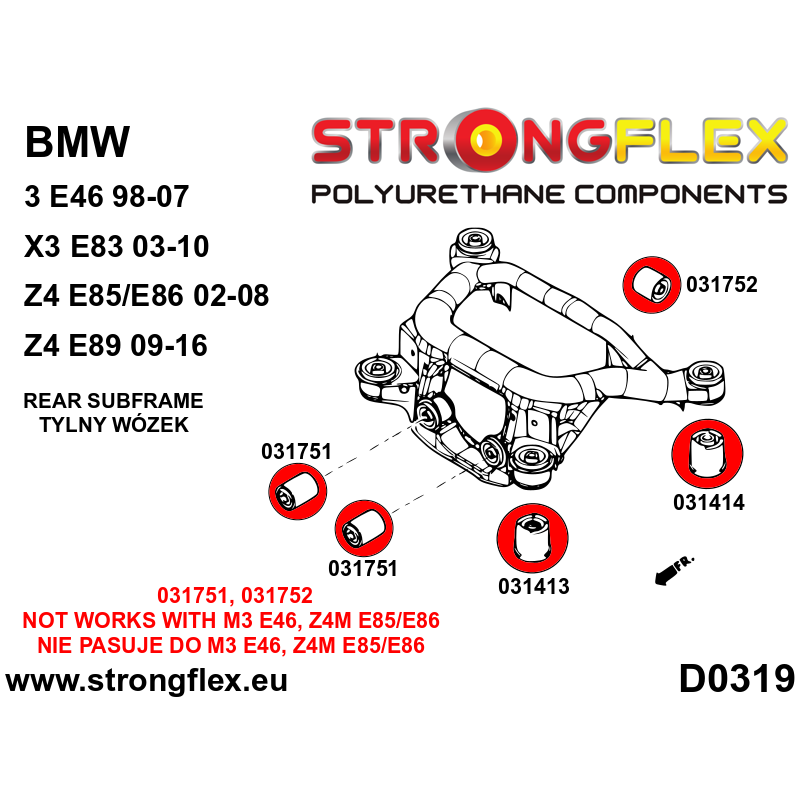

• D0319

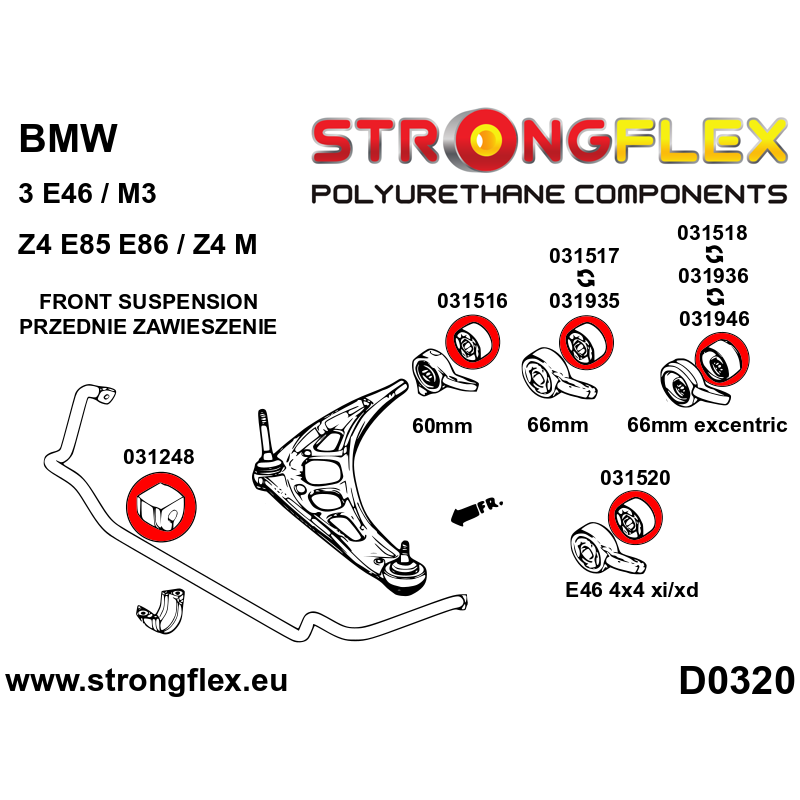

• D0320

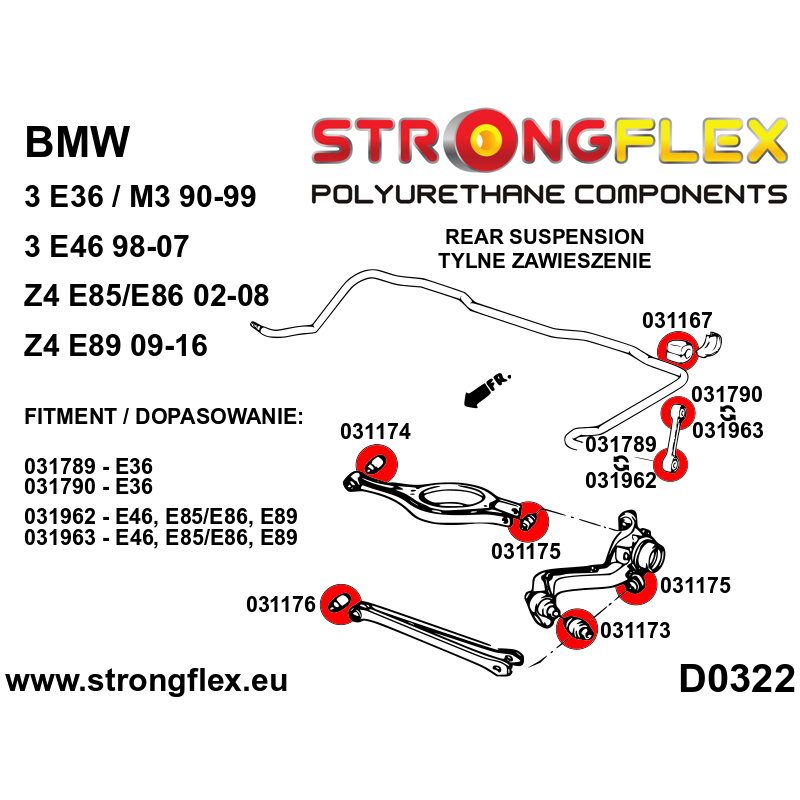

• D0322

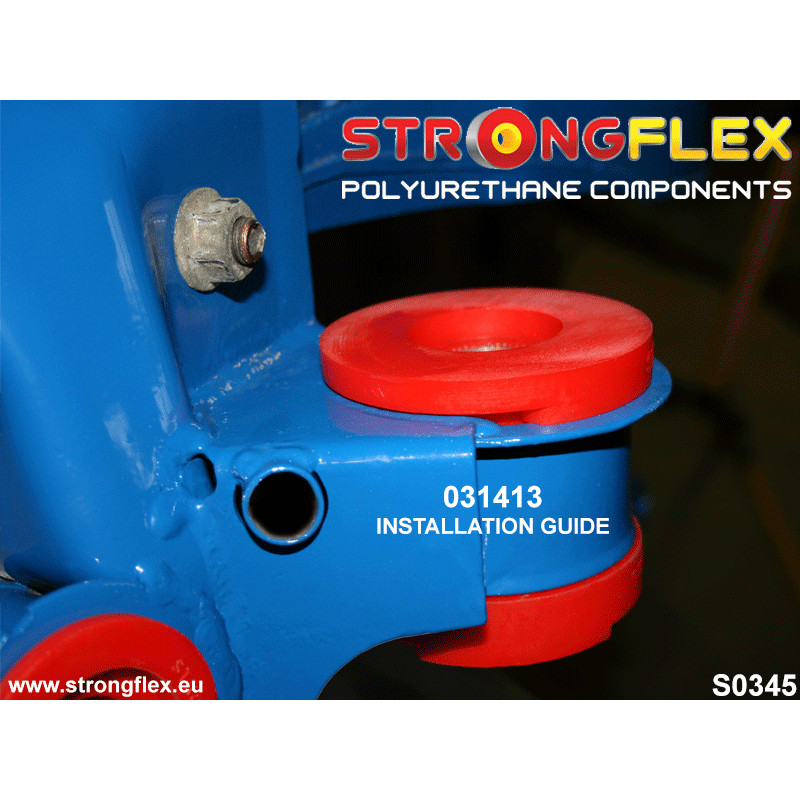

• S0345

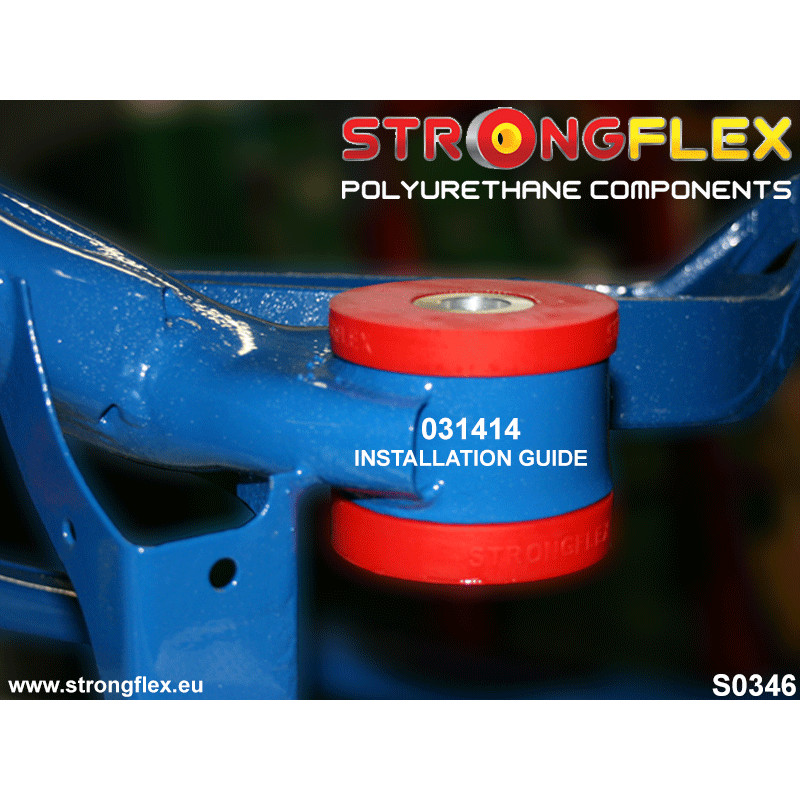

• S0346

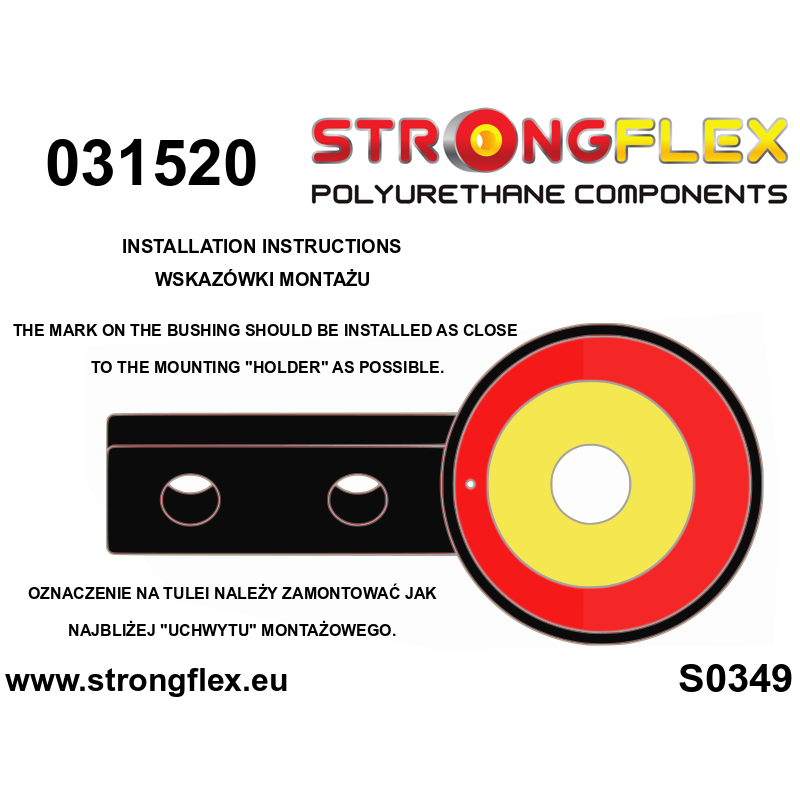

• S0349

Notes

• Front wishbone bush - rear:
  031516 - centric 60mm
  031517 - centric 66mm
  031518 - eccentric 66mm
  031520 - 4x4 versions XI XD


• Rear subframe bushings 031413 and 031414:
  Choose the appropriate hardness 80ShA (red) / 90ShA (yellow).
  Before installing the 90ShA (yellow) bushings, we recommend reinforcing the beam with additional welding or spacers. The original beam without reinforcements may be damaged during "aggressive driving".

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 27

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
