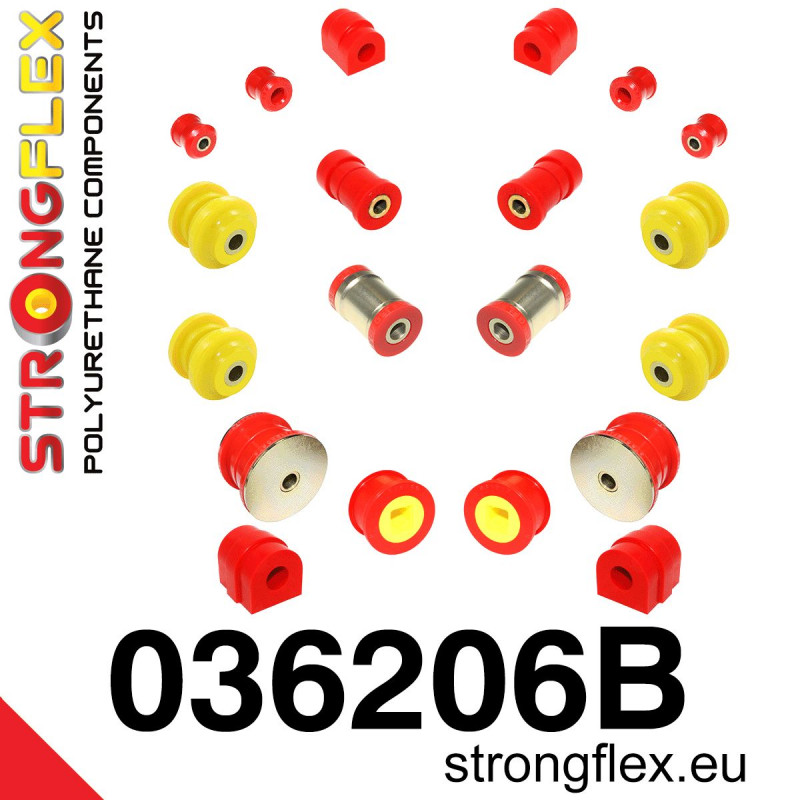

036206B: Front and rear suspension bush kit

Reference: 036206B

Product name: Front and rear suspension bush kit

Fits to:

• BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
• BMW Z4 I (02-08) E85 / E86

Include:

• 2x 031248B: Front anti roll bar bush


• 2x 031516B: Front wishbone bush - centric 60mm
  or
• 2x 031517B: Front wishbone bush - centric 66mm
  or
• 2x 031518B: Front wishbone bush - eccentric 66mm
  or
• 2x 031520B: Front wishbone bush - 4x4 versions XI XD


• 2x 031173B: Rear trailing arm front bush
• 2x 031174B: Rear control arm upper inner
• 4x 031175A: Rear arm - outer bush SPORT
• 2x 031176B: Rear control arm lower inner
• 2x 031167B: Anti roll bar bush front / rear
• 2x 031962B: Rear anti roll bar link to anti roll bar bush
• 2x 031963B: Rear anti roll bar link to arm bush

Diagrams:

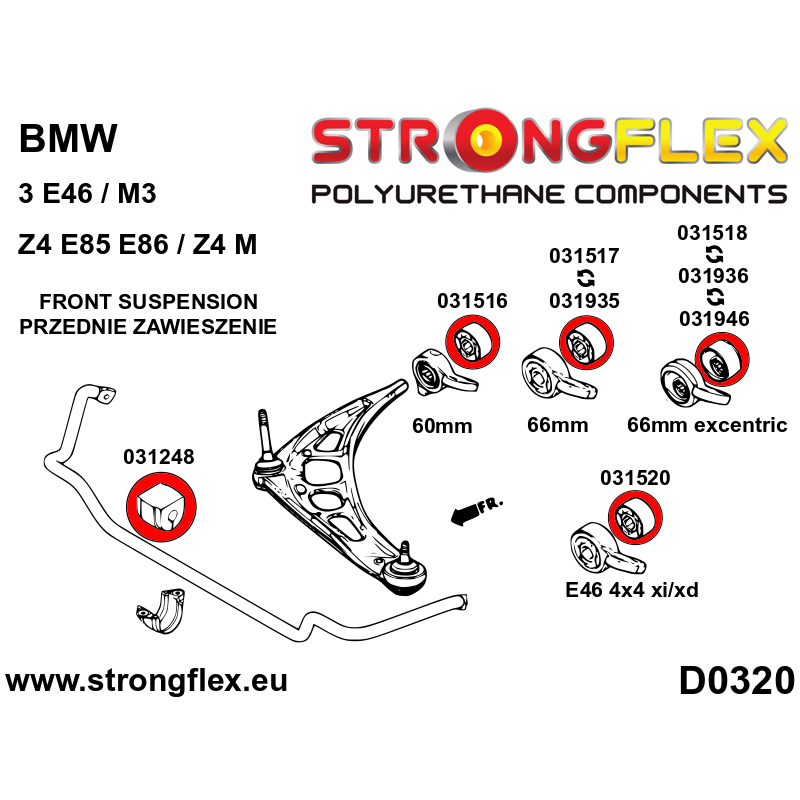

• D0320

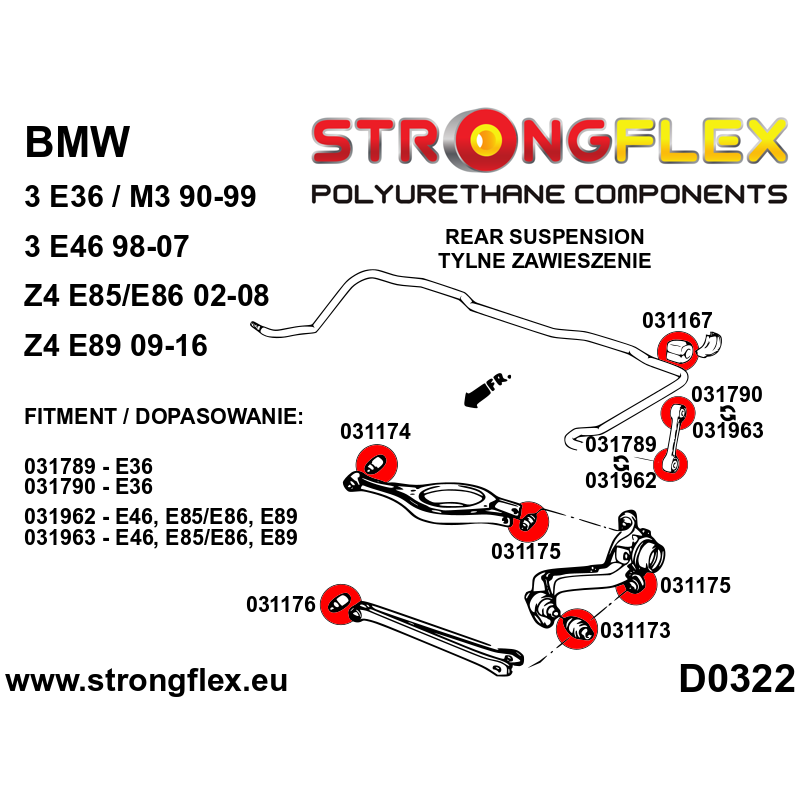

• D0322

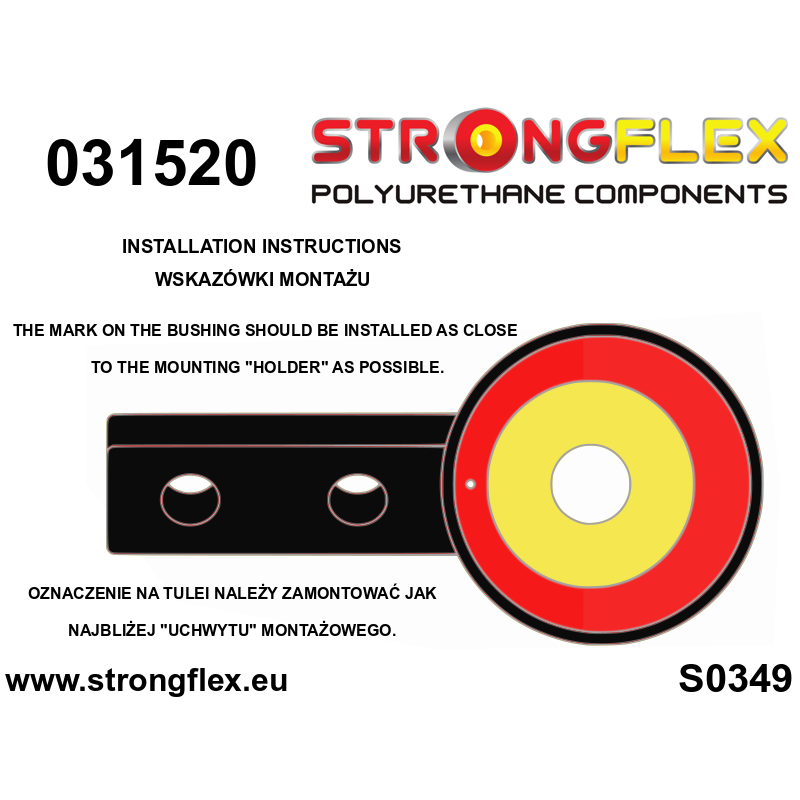

• S0349

Notes

• Front wishbone bush - rear:
  031516 - centric 60mm
  031517 - centric 66mm
  031518 - eccentric 66mm
  031520 - 4x4 versions XI XD

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 16

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
