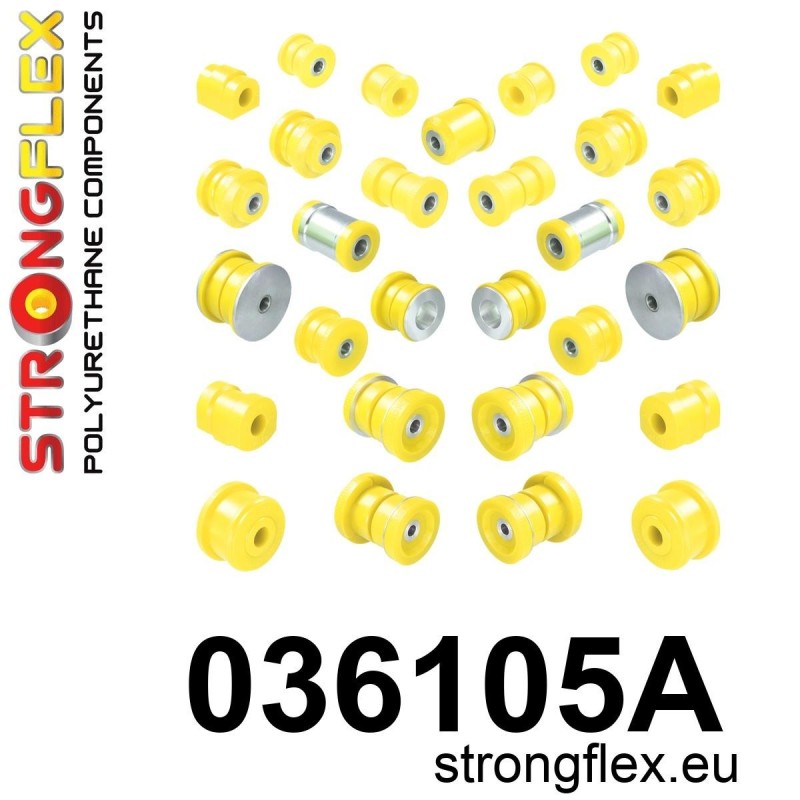

036105A: Full suspension bush kit SPORT

Reference: 036105A

Product name: Full suspension bush kit SPORT

Fits to:

• BMW Series 3 III (90-99) E36 (92-99) M3
• BMW Series 3 III (90-99) E36 Cabrio Coupe Sedan Touring

Include:

• 2x 031195A: Front lower arm bush - centric 60mm SPORT
• or
• 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
• or
• 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
• or
• 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT
• 2x 031183A: Front anti roll bar bush SPORT
• 0/2x 031525A: Front anti roll bar link bush SPORT
• 2x 031173A: Rear trailing arm front bush SPORT
• 2x 031174A: Rear control arm upper inner SPORT
• 2/4x 031175A: Rear arm - outer bush SPORT
• 2x 031176A: Rear control arm lower inner SPORT
• 2x 031167A: Anti roll bar bush front / rear SPORT
• 2x 031789A: Rear anti roll bar link to anti roll bar bush SPORT
• 2x 031790A: Rear anti roll bar link to arm bush SPORT
• 2x 031350A: Rear subframe - front bush SPORT
• 2x 031351A: Rear subframe - front bush SPORT
• 1x 031750A: Rear differential front mount bush SPORT
• or
• 1x 031736A: Rear differential front mount bush M3 EVO SPORT
• 2x 031587A: Rear differential rear mount bush SPORT

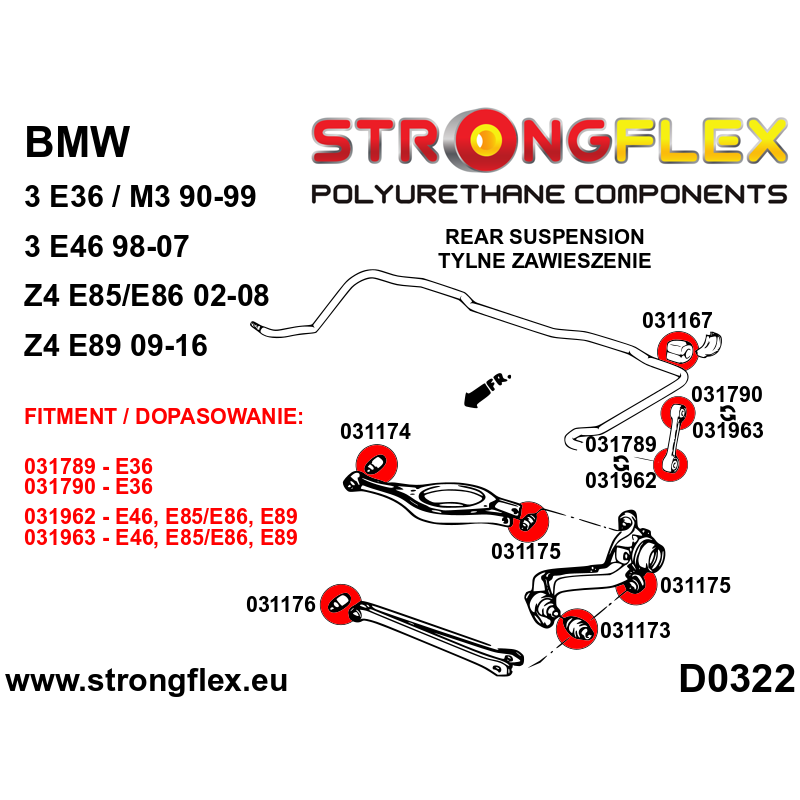

Diagrams:

• D0302
• D0322
• D0332
• S0301
• S0306

Notes

• Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.
• Front wishbone bush - rear: 031195 - centric 60mm 031369 - eccentric 60mm 031737 - centric 60mm E46 wishbone 031738 - eccentric 60mm E46 wishbone
• Rear differential bush - front: If you have an E36 M3 EVO 3.2 model where the differential is mounted on a separate bracket, choose bushes 031736 For other E36 models, bush 031750 fits See the attached photo S0306.
• For bushing 031175: This bushing is not suitable for the upper steering knuckle mount on significantly lowered vehicles with a modified steering knuckle angle. Select the appropriate quantity: 2 or 4 pieces.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 25/27/29

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
