286216B: Full suspension bush kit R32 AWD

Reference: 286216B

Product name: Full suspension bush kit R32 AWD

Fits to:

• Nissan Cefiro (88-92) A31 AWD
• Nissan Skyline VIII (89-94) R32 AWD

Include:

• 2x 281400B: Front anti roll bar bush
  or
• 2x 281401B: Front anti roll bar bush GT-R

• 1x 281261B: Steering rack mount bush
                       45mm/48mm/50mm

• 2x 281957A: Front upper arm - upper bush SPORT
• 2x 281958A: Front upper arm - lower bush SPORT


• 2x 281262B: Front lower radius arm to chassis bush
  or
• 2x 281788B: Front lower radius arm to chassis bush GT-R

• 12x 281218A: Rear arm bush SPORT
• 4x 281267A: Rear lower control arm bush SPORT
• 2x 281268B: Rear anti roll bar bush
• 4x 281269B: Rear anti roll bar link bush
• 4x 281271B: Rear beam mounting bush AWD

Diagrams:

• D2803
• D2821
• D2832
• D2838

Notes

• Select the appropriate diameter of the steering gear bushing 45mm/48mm/50mm.


• Depending on the version, there are different stabilizer bushes 281400 / 281401, see photo S2806.

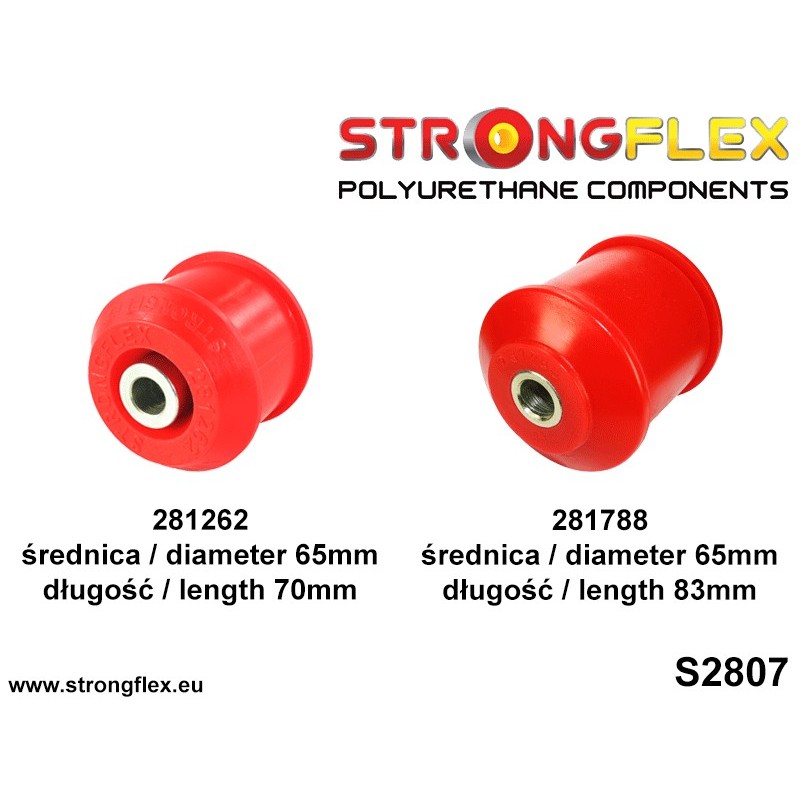

• Depending on the version, there are different front reaction rod bushes:
  281262 - bush length 70mm
  281788 - bush length 83mm
  See photo S2807.

• Due to frequent modifications for Motorsport, Drift, etc., the original rear bogie pads no. oem. 55475-60U00, 55451-33P01 You can buy a replacement for the original washer matched to our sleeve. In the "Cart sleeve washer" field, select the number of washers you need (0pcs/2pcs/4pcs).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 35

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
