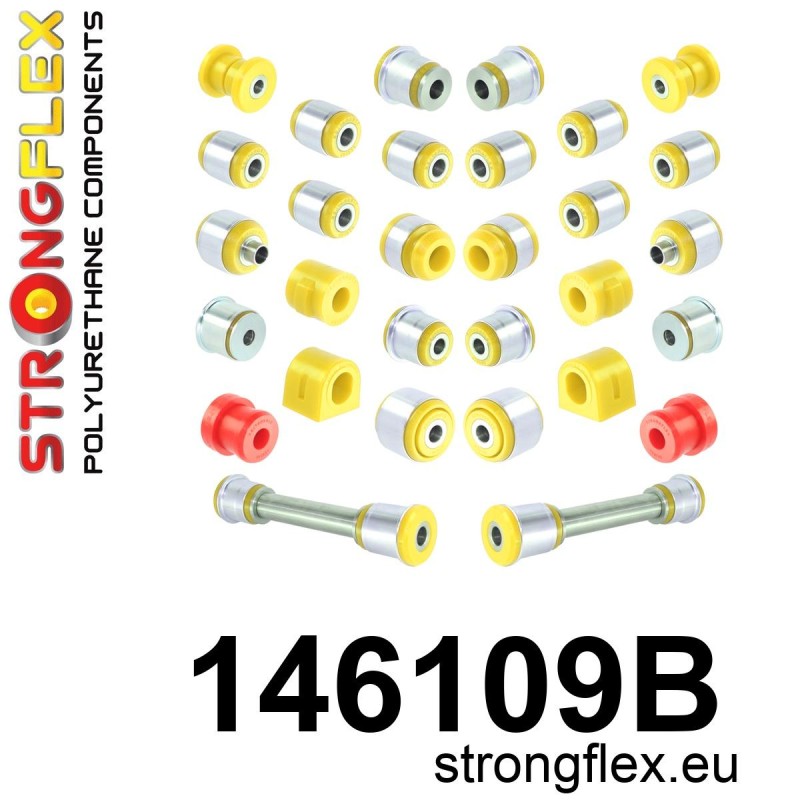

146109B: Full suspension bush kit

Reference: 146109B

Product name: Full suspension bush kit

Fits to:

• Citroën C5 III (08-17)
• Citroën C6 I (05-12)
• Peugeot 407 (04-11)
• Peugeot 508 I (10-18)

Include:

• 2x 141516A: Front anti roll bar bush SPORT
• 2x 141517A: Front upper arm bush SPORT
• 2x 141518A: Front steering knuckle bushing - upper SPORT
• 2x 141519A: Front steering knuckle bushing - lower SPORT
• 2x 141520A: Front wishbone front bush sport SPORT
• 2x 141521B: Front lower wishbone rear bush 45mm
• or
• 2x 141528B: Front lower wishbone rear bush 51mm
• 2x 141522A: Rear upper control arm bushing – inner SPORT
• 2x 141523A: Rear upper wishbone bush – outer SPORT
• 8x 141524A: Rear toe adjuster bush SPORT
• 2x 141525A: Rear trailing arm bush – front SPORT
• 2x 141526A: Rear trailing arm – rear bush SPORT
• 2x 141527A: Rear anti roll bar bush SPORT

Diagrams:

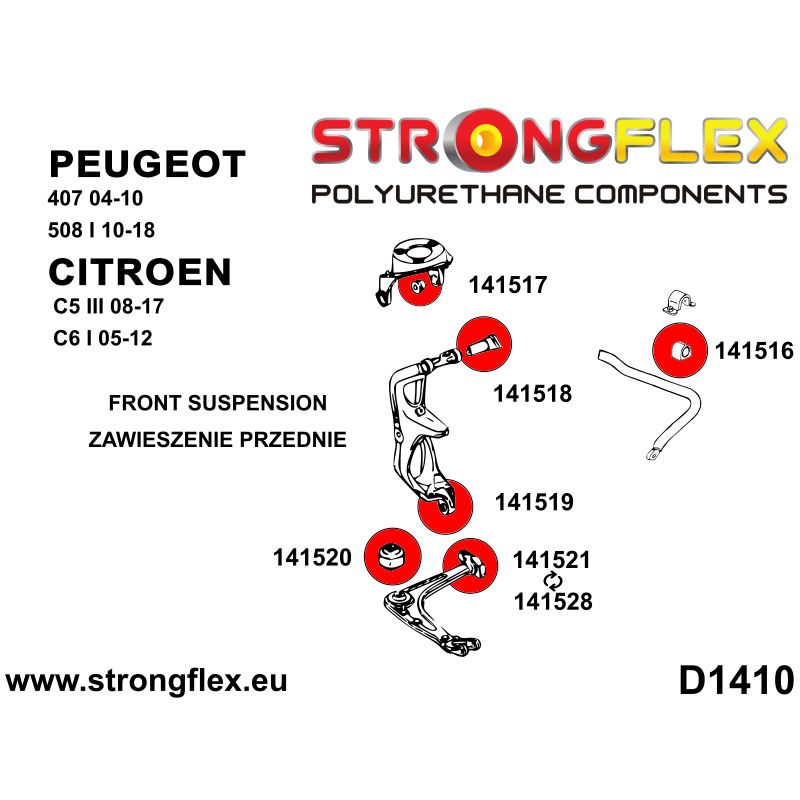

• D1410

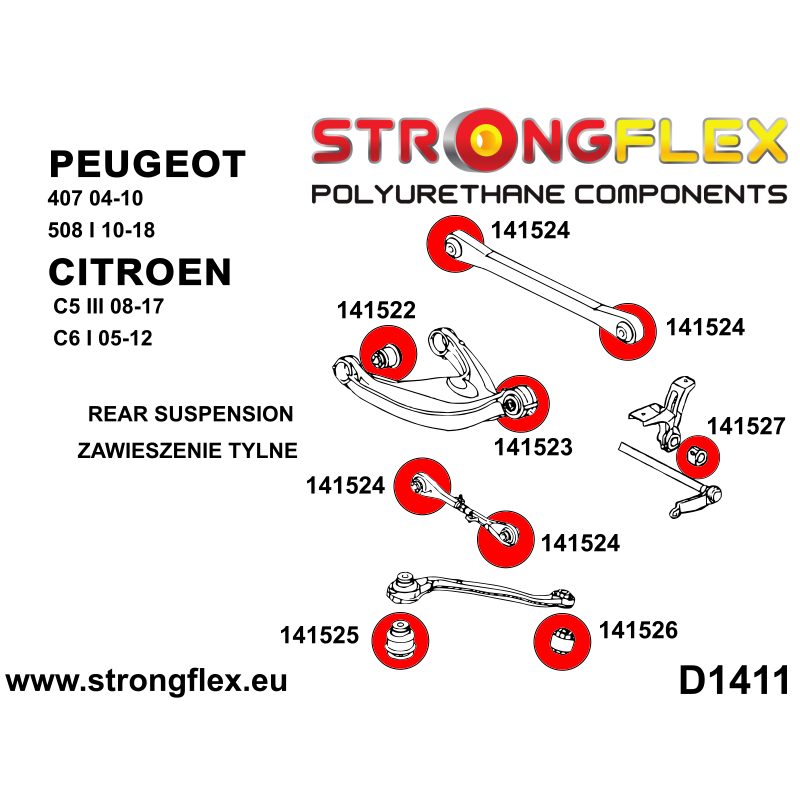

• D1411

Notes

• Some bushes in the kit are only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound. The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.
• There are two types of front sleds. 141521 - Bushing for aluminum sleds. 141528 - Bushing for steel sleds.
• 141525 - For installation, use the original inner sleeve.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 30

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
