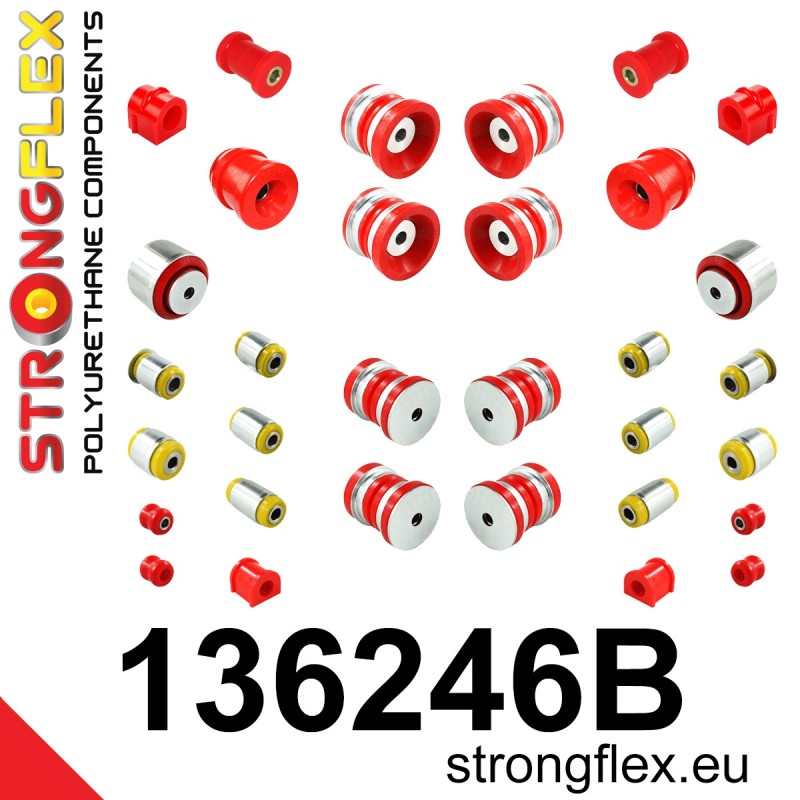

136246B: Full suspension polyurethane bush kit

Reference: 136246B

Product name: Full suspension polyurethane bush kit

Fits to:

• Cadillac BLS (05-10)


• Fiat Croma II (05-10)


• Opel / Vauxhall Signum (03-08)
• Opel / Vauxhall Vectra Cavalier C (02-08)

Include:

• 2x 131132B: Front wishbone front bush
• 2x 131775B: Front wishbone rear bush
• 2x 131776B: Front anti roll bar bush


• 2x 131978B: Rear anti roll bar link bush
• 2x 131979B: Rear anti roll bar link bush
• 2x 131994B: Rear trailing arm bushing - front
• 2x 131995A: Rear upper control arm bushing - inner SPORT
• 2x 131997A: Rear lower control arm bushing – inner SPORT
• 2x 131998A: Rear steering knuckle bush SPORT
• 2x 131999B: Rear stabilizer bush
• 2x 132006A: Rear track rod inner bush SPORT
• 2x 132007A: Rear track rod outer bush SPORT


• 2x 132000B: Rear subframe – front bush
• 2x 132001B: Rear subframe – rear bush


• 2x 132002B: Front subframe – front bush
• 2x 132003B: Front subframe - rear bush

Diagrams:

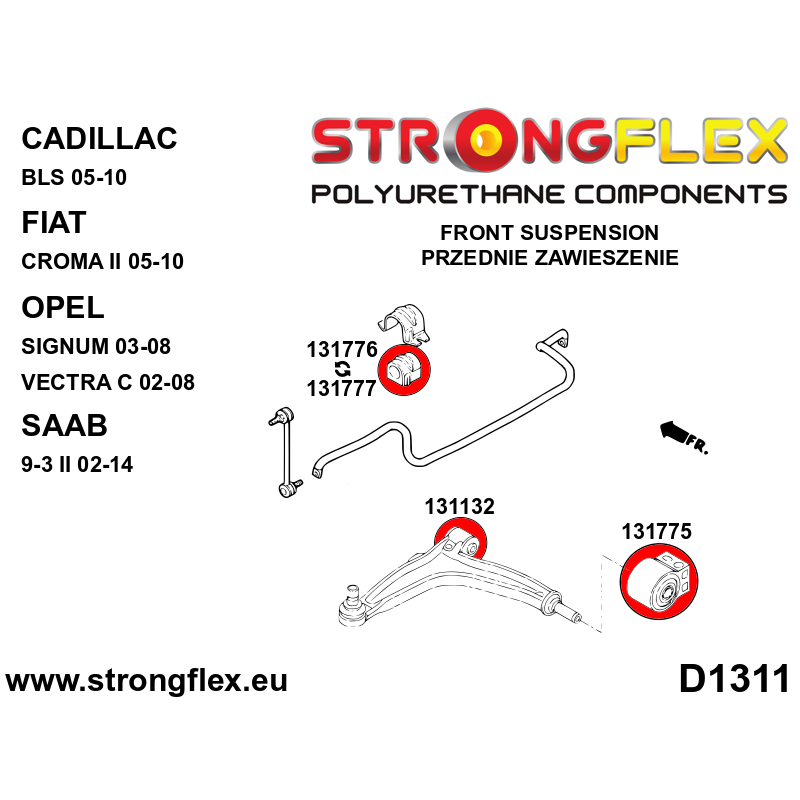

• D1311

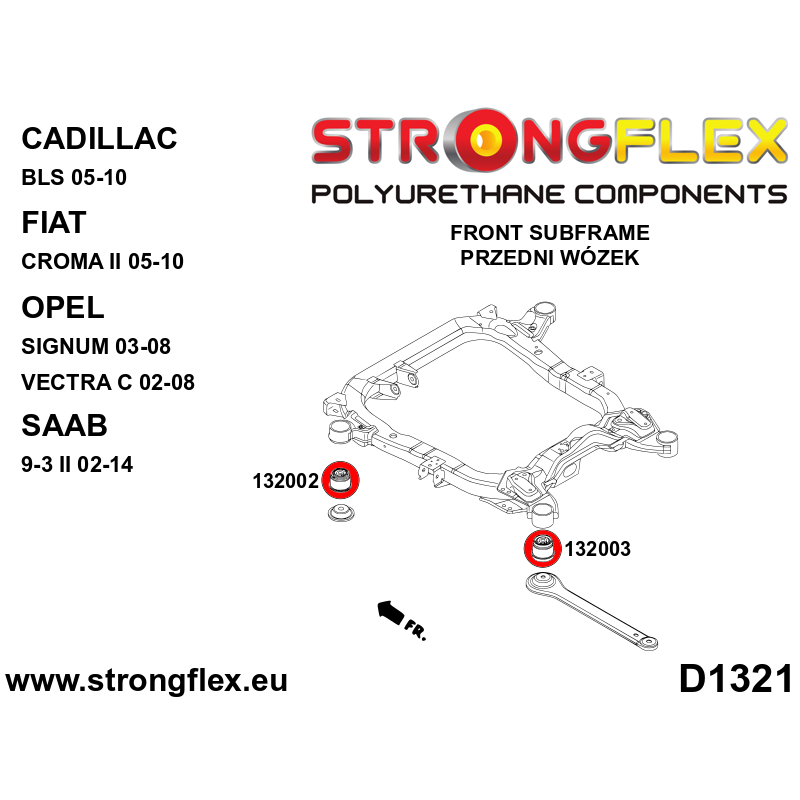

• D1321

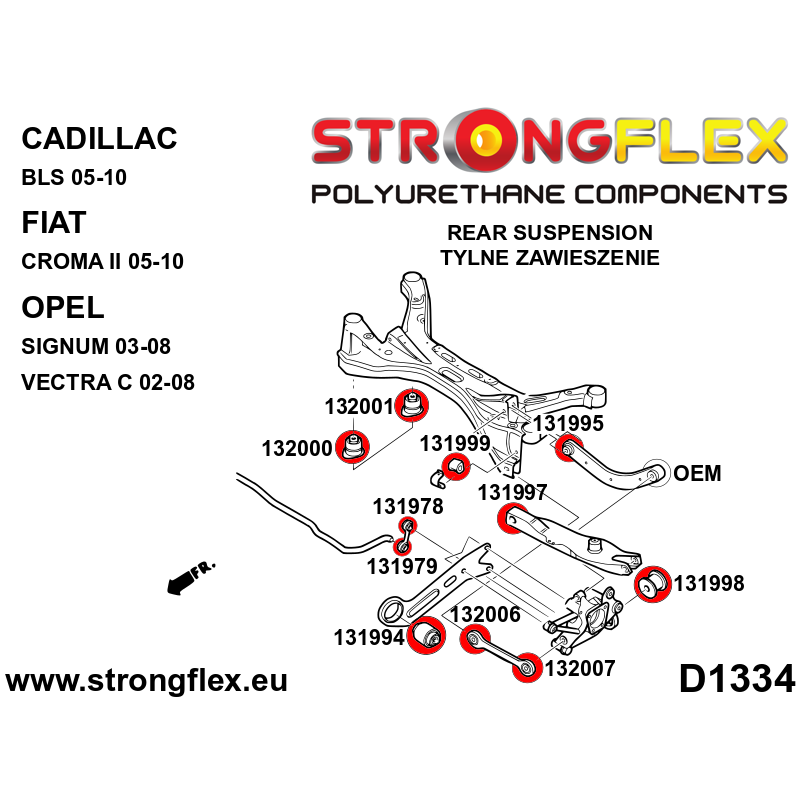

• D1334

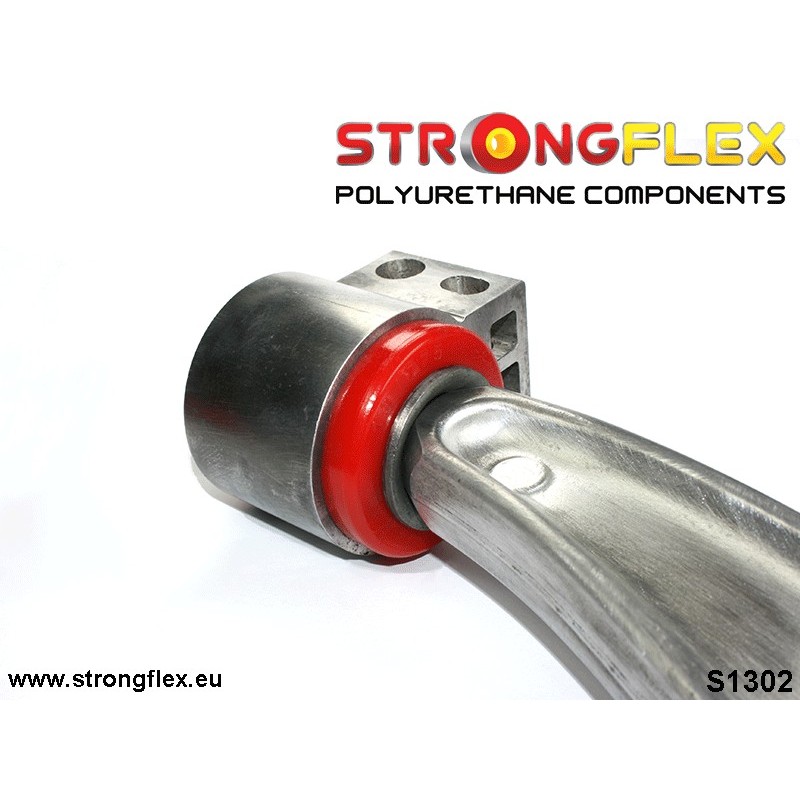

• S1302
• S1303

Notes

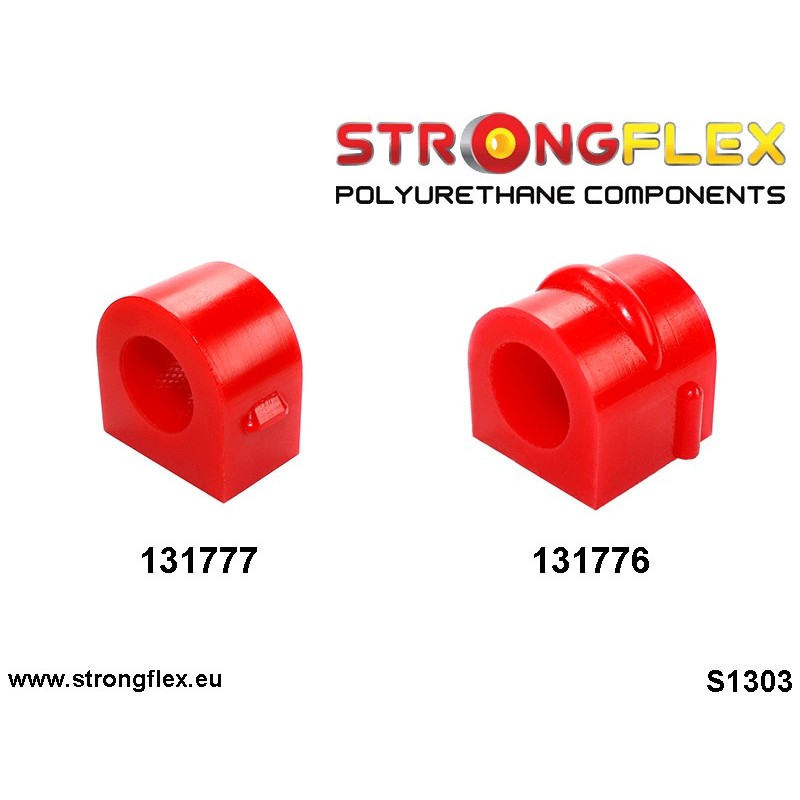

• There are two types of front stabilizer bushing 131776/131777. Before buying check the type of bush. See picture S1303

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 32

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
