286218B: Full suspension bush kit

Reference: 286218B

Product name: Full suspension bush kit

Fits to:

• Nissan Z 300ZX Z32 (90-96)

Include:

• 2x 281262B: Front lower radius arm to chassis bush
• 2x 281957A: Front upper arm - upper bush SPORT
• 2x 281958A: Front upper arm - lower bush SPORT
• 2x 281397A: Front inner track control arm bush 38mm SPORT
• 2x 281207B: Front anti roll bar bush

• 8/12x 281218A: Rear arm bush SPORT

• 4x 281267A: Rear lower control arm bush SPORT
• 2x 281268B: Rear anti roll bar bush
• 4x 281269B: Rear anti roll bar link bush
• 4x 281270B: Rear beam mounting bush
• 1x 281261B: Steering rack mount bush

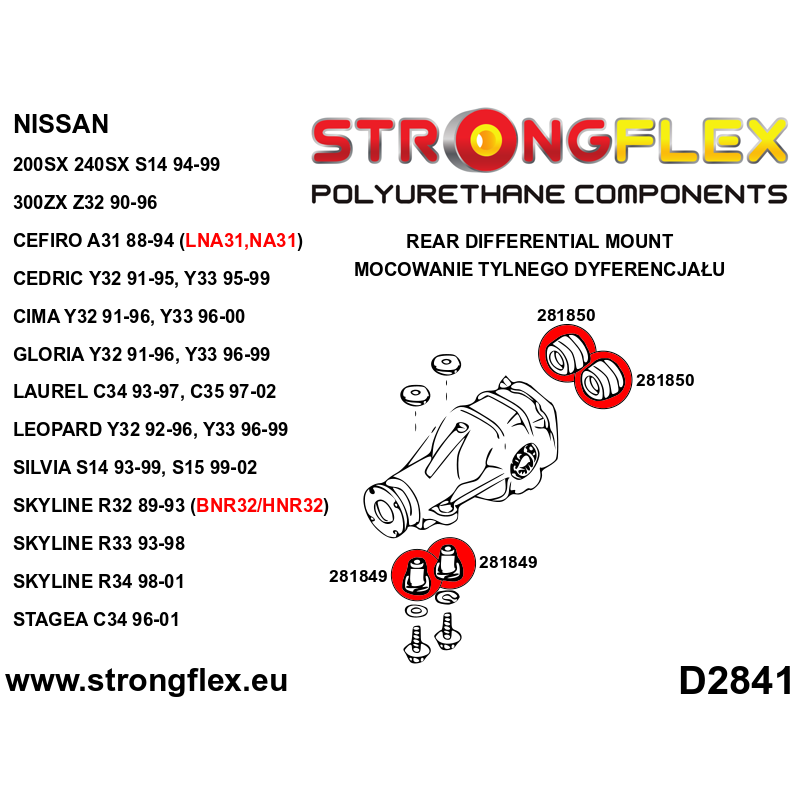

• 2x 281849B: Rear diff mount - front bush
• 2x 281850B: Rear diff mount - rear bush


• 0/2x 281959A: Rear lower shock mount bush 45mm SPORT
  or
• 0/2x 281961A: Rear lower shock mount bush 55mm SPORT

Diagrams:

• D2822
• D2823

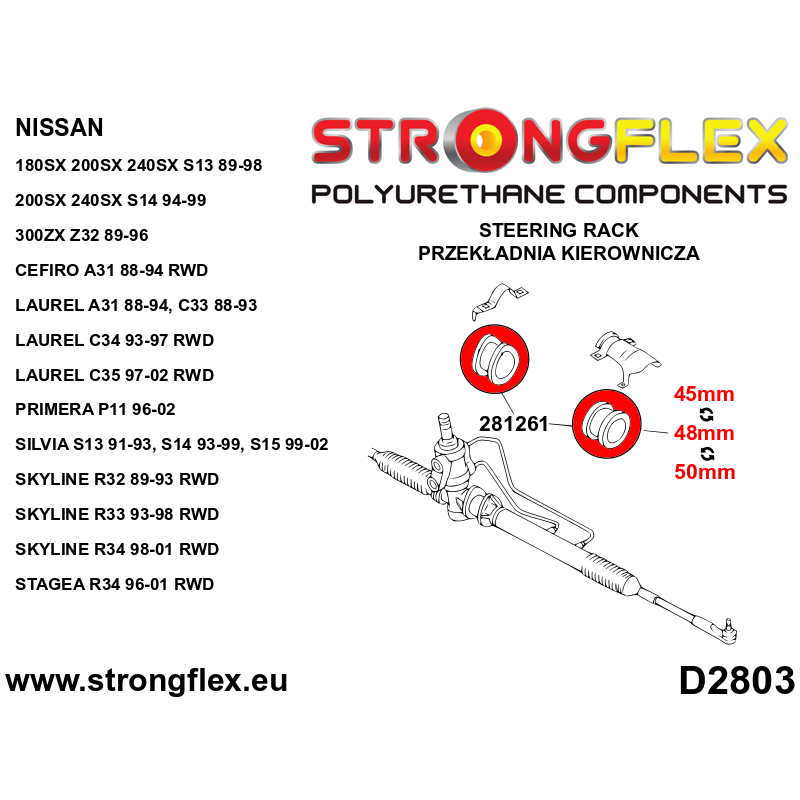

• D2803
• D2805
• D2820

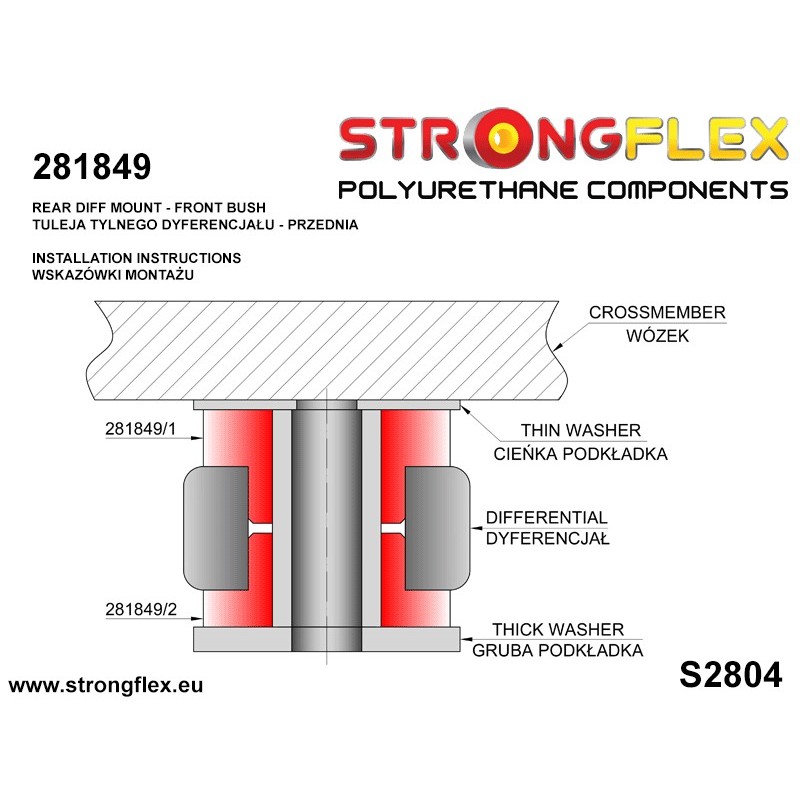

• S2804
• S2805

Notes

• 281218A: With the HICAS system 8 pcs
                 Without the HICAS system 12 pcs


• 281261A: 45mm or 48mm or 50mm diameter.

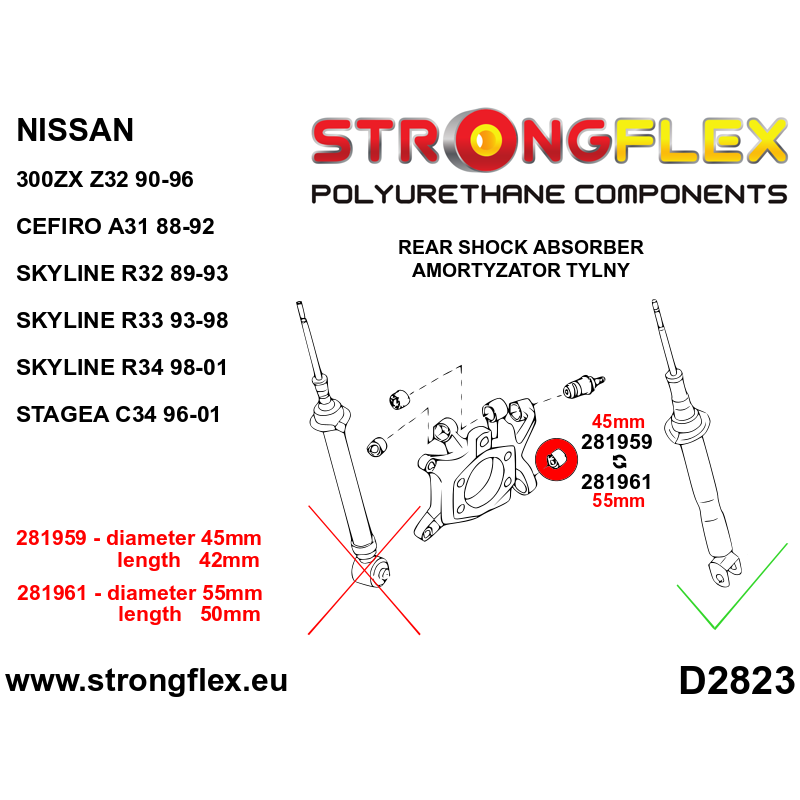

• 281959A or 281961A The bush only fits the aluminum steering knuckle and the shock absorber with the appropriate mount (see D2823).

• If you need a rear subframe bush washer, select the appropriate quantity in the "carriage bush washer" field.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 39/41

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
