286218A: Full suspension bush kit SPORT

Reference: 286218A

Product name: Full suspension bush kit SPORT

Fits to:

• Nissan Z 300ZX Z32 (90-96)

Include:

• 2x 281262A: Front lower radius arm to chassis bush SPORT
• 2x 281957A: Front upper arm - upper bush SPORT
• 2x 281958A: Front upper arm - lower bush SPORT
• 2x 281397A: Front inner track control arm bush 38mm SPORT
• 2x 281207A: Front anti roll bar bush SPORT

• 8/12x 281218A: Rear arm bush SPORT

• 4x 281267A: Rear lower control arm bush SPORT
• 2x 281268A: Rear anti roll bar bush SPORT
• 4x 281269A: Rear anti roll bar link bush SPORT
• 4x 281270A: Rear beam mounting bush SPORT
• 1x 281261A: Steering rack mount bush SPORT
• 2x 281849A: Rear diff mount - front bush SPORT
• 2x 281850A: Rear diff mount - rear bush SPORT


• 0/2x 281959A: Rear lower shock mount bush 45mm SPORT
  or
• 0/2x 281961A: Rear lower shock mount bush 55mm SPORT

Diagrams:

• D2822

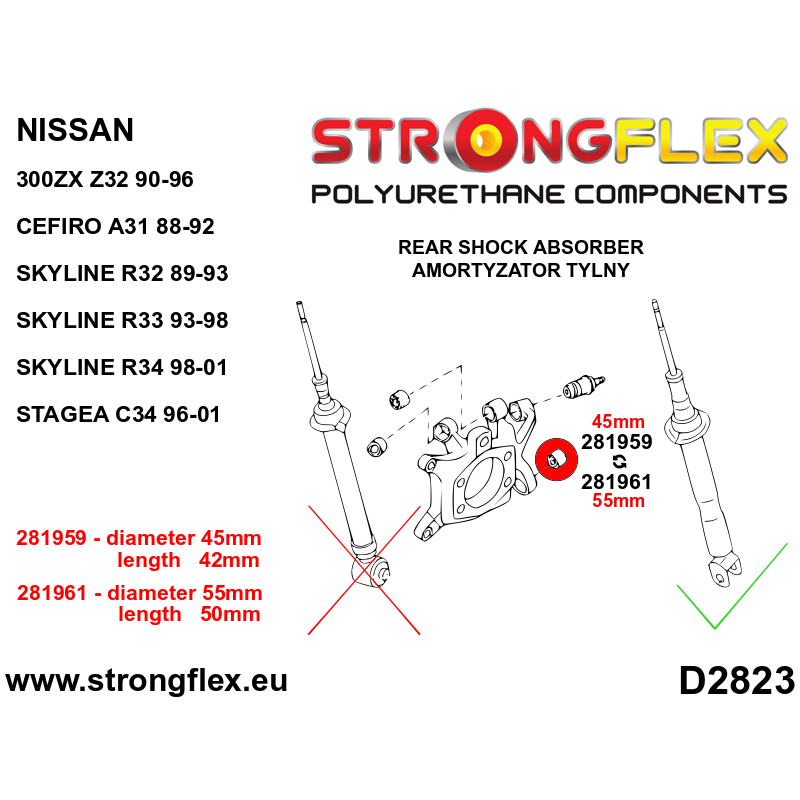

• D2823

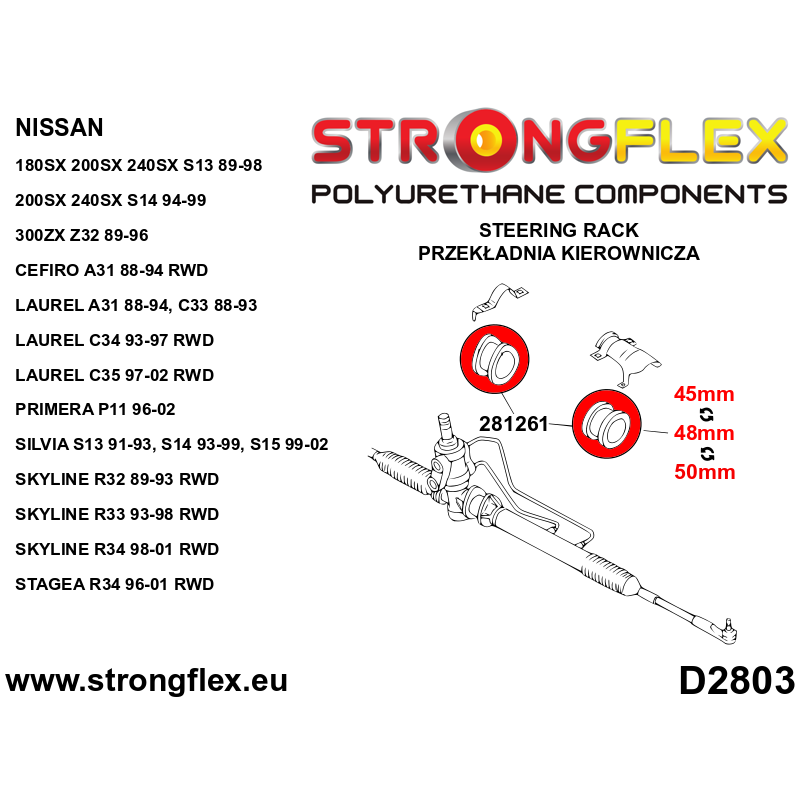

• D2803
• D2805
• D2820

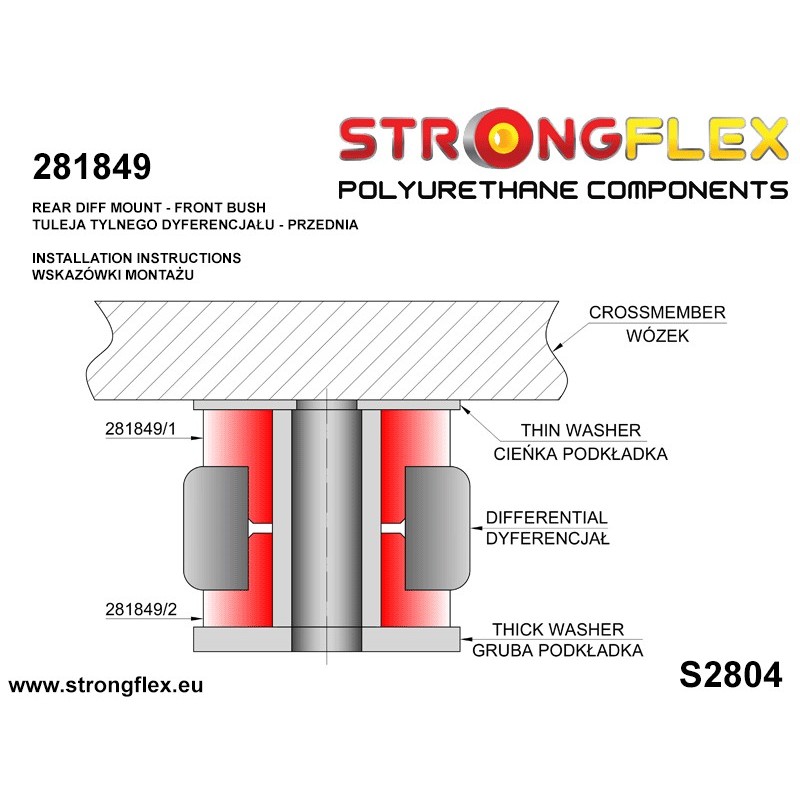

• S2804
• S2805

Notes

• 281218A: With the HICAS system 8 pcs
                 Without the HICAS system 12 pcs


• 281959A or 281961A The bush only fits the aluminum steering knuckle and the shock absorber with the appropriate mount (see D2823).


• 281261A: 45mm or 48mm or 50mm diameter.

• If you need a rear subframe bush washer, select the appropriate quantity in the "carriage bush washer" field.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 39/41

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
